90 Degree Shielded CAT6A Toolless Keystone Jack for High-Performance Structured Cabling

Modern networks depend on components that are small in size but decisive in performance. A keystone jack may appear to be a simple connection point, yet it directly influences signal integrity, installation efficiency, channel reliability, maintenance convenience, and the long-term value of an entire structured cabling system. The SMT-1048T8C6A-FTP 90 Degree Shielded CAT6A Toolless Keystone Jack is designed for demanding copper cabling environments where stable high-frequency transmission, strong shielding, precise termination, and fast deployment are required.

This product belongs to the CAT6A keystone jack category and is suitable for copper structured cabling systems used in enterprise networks, data communication rooms, commercial buildings, smart homes, automation equipment, and work-area communication outlets. It supports category 6A transmission requirements and is designed for frequencies from 1 MHz to 500 MHz. It follows T568A and T568B wiring sequences, providing flexibility for installers and compatibility with common cabling practices.

Unlike ordinary unshielded or difficult-to-terminate jacks, this shielded toolless keystone jack combines a compact shape, 90 degree cable-entry structure, clear universal wiring labels, and IDC termination with a stable RJ45 interface. These features help installers reduce wiring errors, save labor time, and maintain consistent termination quality across large projects. Its shielded FTP design is especially valuable in environments where electromagnetic interference may affect network performance.

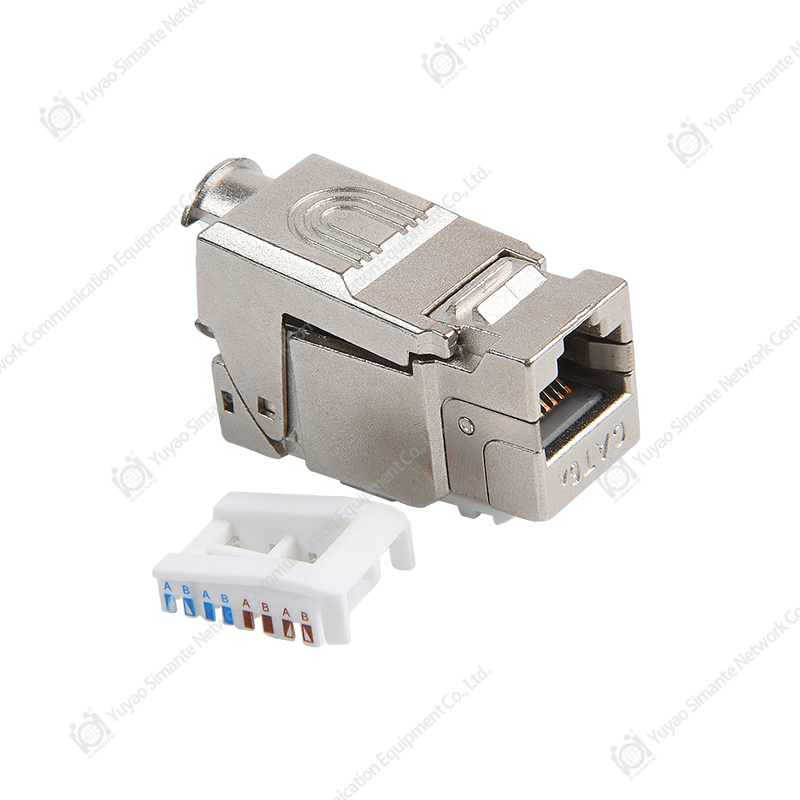

SMT-1048T8C6A-FTP 90 Degree Shielded CAT6A Toolless Keystone Jack

Product Overview

The SMT-1048T8C6A-FTP 90 Degree Shielded CAT6A Toolless Keystone Jack is a modular RJ45 connection component for horizontal cabling and work-area cabling within the same building floor. It provides a reliable connection between network equipment, terminal equipment, distribution frames, wall plates, patch cords, and copper twisted-pair cables. As a CAT6A keystone jack, it is built to support high-speed data transmission and reduce transmission issues such as near-end crosstalk, attenuation, and unstable contact.

The product is designed with backward compatibility in mind. It can be used in CAT6, CAT5e, and lower category copper cabling systems where the project requires a high-grade component that can support present and future network needs. This backward compatibility is important because many buildings have mixed-generation infrastructure. A high-quality CAT6A jack allows users to upgrade gradually without replacing every network component at once.

The 90 degree design allows horizontal cables to be routed conveniently in confined spaces, such as wall boxes, floor boxes, modular patch panels, and distribution frames. In many real installations, cable bending radius, cabinet depth, and wall outlet space are major challenges. A 90 degree keystone jack helps improve cable management by guiding the cable in a more organized direction, reducing stress on conductors, and supporting cleaner installation work.

The toolless termination structure makes the jack practical for fast deployment. Installers can terminate conductors into IDC contacts without relying on a separate punch-down tool. This is beneficial for large projects where hundreds or thousands of termination points must be completed efficiently. Toolless design also improves consistency because the closing mechanism helps press conductors into position evenly, reducing the risk of insufficient insertion or conductor damage caused by manual tool variation.

Core Advantages Over Conventional Keystone Jacks

In competitive structured cabling markets, many keystone jacks claim CAT6A performance, but real project value depends on electrical design, mechanical stability, installation convenience, material quality, and manufacturing control. This 90 degree shielded CAT6A toolless keystone jack offers several advantages compared with conventional solutions.

Strong Shielding for Interference-Sensitive Environments

The FTP shielded construction helps protect signal transmission from external electromagnetic interference. In office buildings, industrial facilities, equipment rooms, automation environments, and smart building systems, network cables may run near power lines, lighting systems, motors, wireless equipment, or other electronic devices. Interference can cause packet loss, unstable bandwidth, retransmission, and network downtime. A shielded keystone jack provides a more complete shielding path when used with compatible shielded cables, patch cords, and panels.

Compared with ordinary unshielded keystone jacks, a shielded jack is more suitable for high-density and high-noise environments. It contributes to a more reliable channel by helping control alien crosstalk and electromagnetic disturbance. For CAT6A networks operating up to 500 MHz, shielding design is not merely an accessory feature; it is an important part of maintaining stable transmission quality.

High and Low Staggered Contact Technology

The RJ45 contact pin structure adopts high and low dislocation technology. This design helps reduce near-end crosstalk by improving the separation and arrangement of signal paths inside the connection interface. Crosstalk is one of the most important performance challenges in twisted-pair cabling, especially at higher frequencies. Even a small internal design difference can influence channel performance.

Many lower-grade jacks rely mainly on basic contact structures and may pass simple continuity checks while failing to provide stable high-frequency performance. This product is engineered to reduce interference between pairs, supporting cleaner signal transmission and helping the complete link meet category 6A requirements.

Toolless Termination for Faster Installation

The toolless structure helps contractors reduce installation time and improve field productivity. Traditional punch-down modules require a punch-down tool, proper impact force, and skilled technique. If the installer applies too much or too little force, the termination may become unreliable. Toolless termination simplifies the process and helps deliver more predictable results.

Clear T568A and T568B labels are marked on the module card wire area, allowing installers to identify conductor positions quickly. This reduces wiring mistakes and improves efficiency. For large structured cabling projects, even a small reduction in termination time per port can produce substantial labor savings.

Compact Embedded Modular Design

The jack uses an embedded design that allows it to be installed in distribution frames to form a modular patch panel. It is also suitable for wall plates and communication sockets in work areas. This modularity gives system designers greater flexibility. The same type of jack can be used across different installation points, simplifying inventory management and replacement.

Its compact form is useful when space is limited. Many competitors provide bulkier shielded CAT6A modules that can be difficult to install in crowded panels or shallow wall boxes. A compact 90 degree design helps reduce cable congestion and supports professional cable routing.

Backward Compatibility and Future-Ready Deployment

The jack is compatible with CAT6, CAT5e, and lower category systems. This means it can be used in both new CAT6A installations and upgrade projects. For customers who want to prepare for higher bandwidth applications while maintaining compatibility with existing equipment, this product offers practical long-term value.

Backward compatibility also makes procurement easier. Contractors and distributors can stock a higher-performance module that serves multiple project types. End users benefit because they are not limited to older performance levels when planning future upgrades.

Technical Performance and Specifications

The performance of a keystone jack must be evaluated through electrical, mechanical, material, and environmental characteristics. The following table summarizes important technical data for this product.

Category	Specification	Practical Value
Product Type	90 Degree Shielded CAT6A Toolless Keystone Jack	Suitable for high-performance structured copper cabling systems
Transmission Category	Category 6A	Supports high-frequency network transmission up to 500 MHz
Frequency Range	1 MHz to 500 MHz	Meets the needs of advanced data communication channels
Wiring Sequence	T568A and T568B	Compatible with common installation standards
Termination	IDC termination for horizontal wiring	Stable conductor connection with efficient installation
RJ45 Interface	RJ45 jack for patch cord connection	Compatible with standard copper patch cords
Conductor Range	23 to 26 AWG twisted pair	Suitable for common copper cabling sizes
Working Voltage	125 V	Reliable operation in communication applications
Withstand Voltage	DC 1000 V or AC 750 V for 1 minute without breakdown or arcing	Demonstrates insulation and safety strength
Insulation Resistance	Initial value not less than 200 MΩ; after damp heat test not less than 100 MΩ	Stable electrical isolation under environmental stress
Plug Insertion Durability	750 mating cycles	Supports repeated patch cord use
Wire Termination Durability	250 termination cycles	Provides robust IDC performance during maintenance or rework
Operating Temperature	-25°C to +70°C	Suitable for varied indoor and equipment-room environments
Humidity Requirement	Not more than 85%	Supports stable use in normal communication environments
Plastic Material	PC polycarbonate	Strong, stable, and suitable for precision molded parts
PCB Material	FR4	Reliable printed circuit board base for signal control
Contact Material	Phosphor bronze with gold plating	Improves conductivity, wear resistance, and contact reliability
IDC Terminal Material	Phosphor bronze with nickel plating	Provides strong clamping and corrosion resistance
Environmental Compliance	ROHS compliant	Meets environmental material requirements

Electrical Reliability for CAT6A Networks

CAT6A cabling systems are widely used for high-speed Ethernet applications, including 10 Gigabit Ethernet over balanced twisted-pair copper cabling. To support such applications, every channel component must maintain signal performance at high frequencies. The keystone jack is a critical transition point between horizontal cable and patch cord, so its internal geometry, contact design, PCB layout, and termination consistency directly affect channel quality.

This product is designed for a frequency range of 1 MHz to 500 MHz. Such capability allows it to support category 6A structured cabling requirements when installed with compatible cables, patch panels, patch cords, and proper grounding for shielded systems. The product’s high and low staggered contact arrangement helps reduce near-end crosstalk, while its shielded construction supports better electromagnetic protection.

The insulation resistance value is another key indicator of electrical quality. With an initial insulation resistance of at least 200 MΩ and at least 100 MΩ after constant damp heat testing, the jack demonstrates the ability to maintain electrical isolation under environmental stress. This matters in long-term installations where humidity, temperature changes, and dust may affect weaker products over time.

The withstand voltage performance of DC 1000 V or AC 750 V for one minute without breakdown or arcing reflects strong insulation design. Although network communication operates at much lower voltage levels, withstand voltage tests help verify material integrity, spacing control, and safety margins.

Mechanical Design and Installation Strength

A keystone jack must perform electrically, but it must also survive repeated handling, cable movement, patch cord insertion, and field installation conditions. Mechanical weakness can cause intermittent faults, loose contacts, conductor slippage, or broken latching features. This product addresses those concerns with robust material choices and practical design details.

The specified insertion force is not more than 20 N, while pull-out force is not less than 20 N. This balance helps ensure that patch cords can be inserted without excessive effort while remaining securely connected during use. The connector connection device can withstand 50 N for 60 ± 5 seconds, demonstrating mechanical stability under load.

The RJ45 plug and socket interface is rated for 750 insertion cycles. In real-world networks, patch cords may be moved during equipment changes, troubleshooting, workstation relocation, or cabinet maintenance. A durable jack reduces the risk of degraded contact performance after repeated operations. The IDC termination area is rated for 250 wire terminations, supporting practical maintenance and re-termination needs.

The IDC terminal clamps 23 to 26 AWG twisted-pair conductors. This range covers many common horizontal cable constructions and allows the product to fit standard structured cabling projects. The use of phosphor bronze in the contact and IDC components supports resilience, conductivity, and long-term spring performance.

Material Quality and Surface Treatment

Material selection is a major difference between premium keystone jacks and low-cost alternatives. Poor materials may deform, oxidize, crack, lose spring force, or fail under temperature and humidity changes. This product uses carefully selected metallic and non-metallic materials to support consistent performance.

The gold needle contacts are made from phosphor bronze with gold plating. Phosphor bronze offers excellent elasticity and fatigue resistance, making it appropriate for repeated plug insertion. Gold plating improves surface conductivity and corrosion resistance at the contact point. The gold plating thickness range of 3 to 50 microinches provides options for different project requirements and market expectations.

The IDC wire terminal is made from phosphor bronze with nickel plating. Nickel plating helps improve wear and corrosion resistance. Because the IDC terminal must cut through insulation and clamp the conductor securely, it needs both sharpness and spring force. A lower-quality terminal may loosen over time, especially after temperature changes or cable stress. A robust IDC material helps maintain stable conductor contact.

The plastic body uses PC polycarbonate. PC is known for good mechanical strength, dimensional stability, and impact resistance. In precision components such as keystone jacks, plastic quality influences latch reliability, dimensional fit, terminal alignment, and long-term durability. The PCB uses FR4 material, a widely recognized glass-reinforced epoxy laminate used in reliable circuit assemblies.

Environmental Performance and Compliance

Structured cabling components are often installed and left in service for many years. They may be exposed to changing temperatures, humidity, storage conditions, and installation environments. This product is designed for an operating temperature range from -25°C to +70°C, making it suitable for many indoor communication spaces, cabinets, work areas, and controlled technical environments.

The humidity requirement is not more than 85%, with testing conditions related to elevated temperature. Insulation resistance after damp heat testing remains not less than 100 MΩ, showing that the product is engineered to maintain performance when exposed to environmental stress.

The product also meets ROHS requirements, which is important for customers who need environmentally responsible components. ROHS compliance indicates control of restricted hazardous substances, supporting international procurement standards and responsible material management.

Salt spray testing requirements further demonstrate attention to corrosion resistance. The test conditions include a salt solution pH between 6.5 and 7.2 at 35 ± 2°C, a sodium chloride concentration of 5 ± 0.1%, and recommended continuous atomization for 48 hours. Such tests help evaluate the resistance of metal surfaces and plated components in corrosive environments.

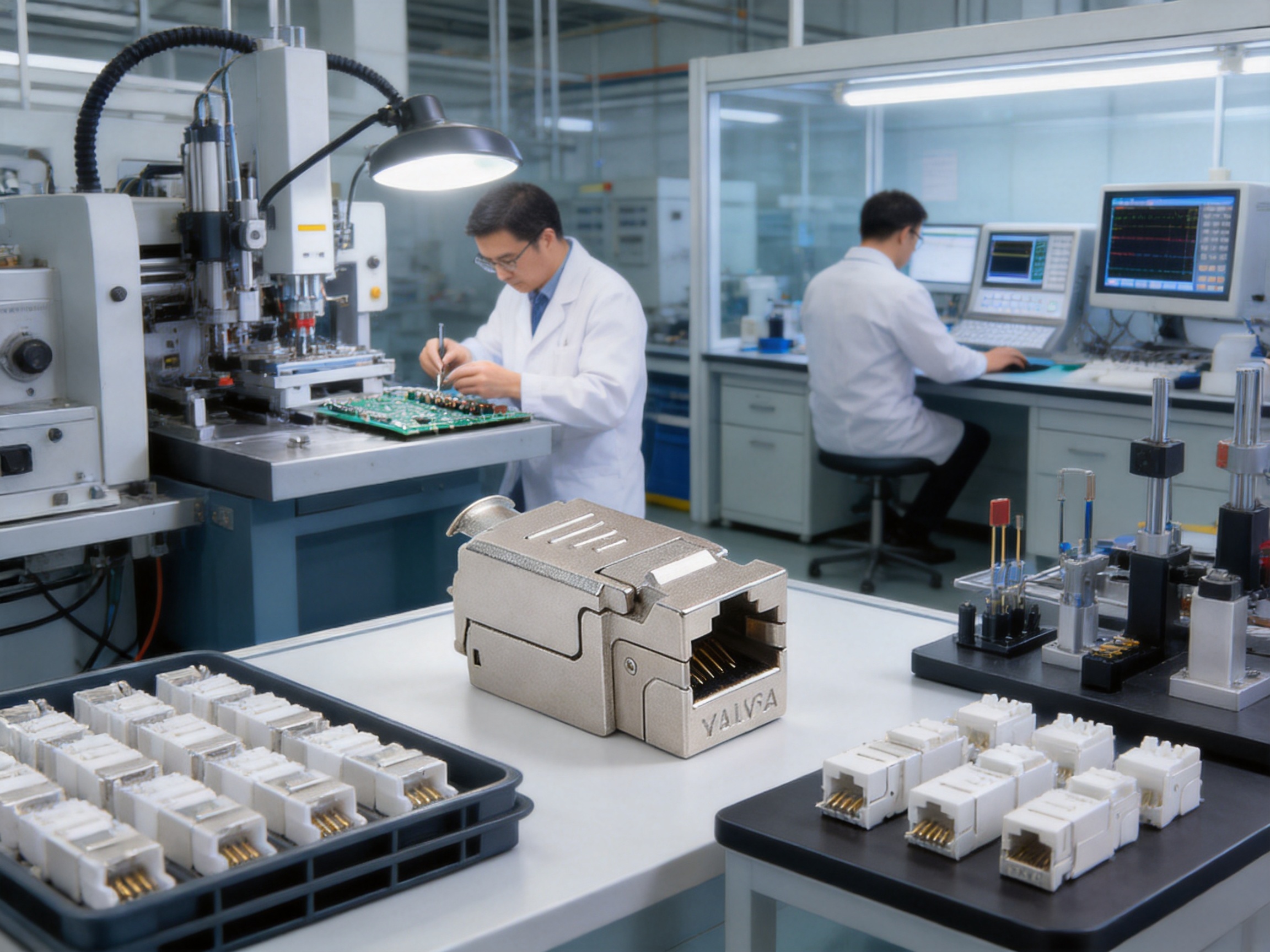

Manufacturing Strength Behind the Product

A high-performance keystone jack cannot depend on design alone. Consistent manufacturing is essential. Yuyao Simante Network Communication Equipment Co., Ltd. is a professional manufacturer of network cabling solutions and optical fiber products, integrating design, development, sales, and service. The company’s manufacturing foundation supports the quality consistency required for structured cabling components.

The company has nearly 20 years of service experience in network communication and cabling products. This long-term focus provides practical understanding of installer requirements, market expectations, channel performance, and product reliability. Rather than treating a keystone jack as a generic plastic part, the company approaches it as a precision communication component.

Its research and development system is one of the core strengths behind product stability. More than 10 engineers and over 30 full-time technical personnel support design improvement, process control, quality development, and product updates. In structured cabling, stable quality begins at the design source. Dimensional tolerance, contact arrangement, terminal geometry, plastic flow, metal plating, PCB design, and assembly sequence all need careful engineering control.

The factory operates 10 regular and customized production lines. This helps support both standard product output and customer-specific project requirements. The company also maintains 10 fully automatic injection molding machines and 20 semi-automatic injection molding machines. These resources are important because keystone jacks require precision plastic parts with stable dimensions. A small deviation in the module body, latch, wire cap, or internal support structure can affect installation fit and termination quality.

The company also uses 8 sets of automatic assembly machines. Automation helps improve consistency, reduce manual variation, and support stable production volumes. With an annual output of more than 9 million units, the manufacturing system is prepared for large-scale supply while maintaining quality control.

Advanced Process Control for Consistent Performance

In many cabling projects, the difference between a dependable jack and a problematic one appears only after installation. A low-cost product may look acceptable but later create intermittent network faults. Advanced process control reduces this risk by ensuring that every critical feature is manufactured within defined standards.

For the plastic housing, injection molding process control affects dimensional accuracy, surface finish, strength, and assembly fit. Stable molding parameters help avoid warping, flash, shrinkage, short shots, or weak latch features. The use of fully automatic and semi-automatic injection molding equipment enables production flexibility while preserving repeatability.

For metal contacts, stamping accuracy and plating quality are essential. The phosphor bronze contacts must maintain precise shape and spring behavior. Gold plating must be controlled to ensure stable contact resistance and corrosion protection. Nickel-plated IDC terminals must retain sharpness and clamping force. Process control at this level helps the finished jack maintain performance across repeated plug insertions and wire terminations.

For PCB-related performance, material quality and layout control influence high-frequency transmission. CAT6A performance depends on internal balance, pair separation, impedance management, and crosstalk reduction. FR4 PCB material supports stable structure, while the high and low contact arrangement helps reduce near-end crosstalk.

Assembly processes must align the RJ45 contacts, IDC terminals, shielding parts, wire cap, and housing precisely. Automatic assembly equipment helps reduce human error and improve product uniformity. Quality testing further supports customer confidence by checking mechanical fit, electrical continuity, and performance-related characteristics.

Quality Philosophy for High-End Markets

The company positions itself toward higher-end market requirements, which means product quality is managed strictly from production through testing. For structured cabling, customers do not only want a component that passes a basic inspection. They need reliable performance after installation, compatibility with standards, and confidence that different batches will behave consistently.

The company’s experience in Europe, Australia, Africa, the Middle East, and Southeast Asia gives it exposure to diverse market expectations. Different regions may require specific packaging, documentation, testing, and product configurations. Supporting OEM and ODM projects also demonstrates flexibility in product customization and engineering cooperation.

For this keystone jack, quality strength is reflected in details: the compact 90 degree shape, clearly marked wiring labels, shielded design, durable contacts, standard-compatible wiring sequence, strong IDC clamping, and environmental performance. These features are not isolated; they form a complete product system designed for professional installation and long-term operation.

Applications in Structured Cabling Systems

This shielded CAT6A keystone jack is suitable for multiple copper cabling applications. It can be installed in modular patch panels, wall face plates, work-area data sockets, floor boxes, and communication outlets. It is especially useful where a structured cabling system requires high performance, clean cable routing, and shielded protection.

In commercial office buildings, the jack can be used at workstation outlets to connect computers, VoIP phones, printers, wireless access points, and other network equipment. Its compatibility with T568A and T568B wiring sequences helps align with different project standards.

In data communication rooms, the jack can be installed into modular patch panels to create flexible port layouts. The embedded module design supports quick replacement and scalable panel assembly. Because it is compact and uses a 90 degree cable-entry format, it helps reduce cable congestion behind panels.

In smart home systems, the jack can support data outlets for multimedia distribution, security systems, home automation controllers, access points, and connected devices. As network demands increase in residential environments, using CAT6A-rated components helps prepare for higher bandwidth requirements.

In industrial automation or equipment environments, shielding becomes particularly important. Machines, motors, power control equipment, and electronic devices can create interference. When installed as part of a complete shielded cabling system, the jack helps maintain more reliable communication.

Installer-Focused Design

Professional installers evaluate products not only by laboratory specifications but also by field experience. A product that is hard to terminate, confusing to wire, or difficult to fit into panels increases project time and troubleshooting costs. This keystone jack addresses installer needs in several ways.

First, the universal wiring label is clearly marked on the module card wire area. This allows installers to choose T568A or T568B wiring sequences accurately. Clear labeling is especially important on large job sites where multiple installers may work simultaneously.

Second, the toolless structure reduces dependence on impact punch-down tools. This can improve speed and consistency, particularly when termination must be performed in tight spaces or at awkward angles. It also reduces the number of tools that technicians need to carry.

Third, the 90 degree orientation supports better cable routing. In shallow wall boxes or crowded distribution frames, straight-entry modules may force cables to bend sharply. Excessive bending can affect cable geometry and performance. A 90 degree entry helps guide the cable naturally and protects the twisted-pair structure.

Fourth, the compact form improves compatibility with modular installation environments. A bulky jack can interfere with neighboring ports or panel accessories. A compact keystone design supports higher-density installation and cleaner layouts.

Why Shielded CAT6A Matters

Network bandwidth demands continue to increase. Applications such as cloud computing, high-definition video, wireless access point backhaul, security surveillance, remote collaboration, and industrial data exchange place greater pressure on physical network infrastructure. CAT6A cabling is commonly selected because it supports higher frequency performance and can serve as a future-ready copper cabling platform.

However, CAT6A performance is only reliable when all channel components are properly selected and installed. A cable alone cannot guarantee performance if the termination point is weak. The keystone jack must preserve pair balance, minimize crosstalk, and maintain stable contact. Shielding helps further protect the channel in environments where interference risk is present.

Compared with CAT5e or basic CAT6 components, CAT6A-rated shielded keystone jacks provide greater performance margin. This margin is valuable because real job sites rarely match ideal laboratory conditions. Cables may be bundled, routed near electrical systems, or installed in dense panels. A higher-grade shielded jack helps reduce risk and supports more dependable operation.

Packaging, Storage, and Supply Practicality

Product packaging and storage also influence quality. The jack is placed into a special blister bag and then into a cardboard box. Accessories are packed at the same time, and labels indicate the product model and quantity. Proper packaging helps protect parts from scratches, deformation, contamination, and handling damage during transportation and storage.

The regular packing quantity is 10 boxes per carton, 50 pieces per box, and 500 pieces per carton. This packaging structure is practical for distributors, contractors, and large projects because it supports organized inventory control and efficient site distribution.

Recommended storage conditions are an ambient temperature from -5°C to +30°C, relative humidity not more than 70%, and surrounding air free from acid, alkali, and other corrosive gases. Under suitable storage conditions, the storage period is three years. These requirements help preserve contact surfaces, plastic stability, and overall product condition before installation.

OEM and ODM Value for Project Customers

Many network cabling projects require more than standard catalog products. Customers may need specific packaging, labeling, plating thickness, color options, accessory combinations, or project-based customization. The company’s OEM and ODM capabilities support these needs.

With design, development, production, sales, and service integrated in one manufacturing organization, communication can be more efficient. Engineering teams can evaluate feasibility, production teams can assess tooling or assembly requirements, and sales teams can coordinate customer expectations. This integrated structure helps reduce delays and improves the success rate of customized projects.

For distributors, OEM support can help build a differentiated product line. For contractors, customized packaging or labeling can simplify project deployment. For system integrators, product adjustments may help meet special cabinet, wall plate, or regional market requirements.

Comparison With Typical Market Alternatives

In the keystone jack market, buyers often encounter several product types: basic CAT5e jacks, standard CAT6 jacks, unshielded CAT6A jacks, and shielded CAT6A modules. While each type has its place, high-performance projects benefit from selecting a jack that provides both performance and installation convenience.

Compared with CAT5e or CAT6 jacks, this CAT6A shielded jack offers higher frequency capability up to 500 MHz and better preparation for bandwidth-intensive applications. It provides a stronger performance foundation for networks designed to last many years.

Compared with unshielded CAT6A jacks, this FTP shielded version provides better protection in interference-sensitive installations. When used with matching shielded cable and grounding practices, it helps create a more resilient channel.

Compared with tool-required shielded jacks, the toolless structure can improve installation efficiency and reduce dependence on installer technique. This matters when termination quality must remain consistent across large batches.

Compared with bulky straight-entry modules, the compact 90 degree structure improves cable routing and helps fit installations where space is limited. It supports cleaner work behind panels and within wall outlets.

Compared with low-cost products using weaker materials, this jack uses phosphor bronze contacts, gold plating, nickel-plated IDC terminals, PC polycarbonate plastic, and FR4 PCB material. These material choices support long-term reliability and better contact stability.

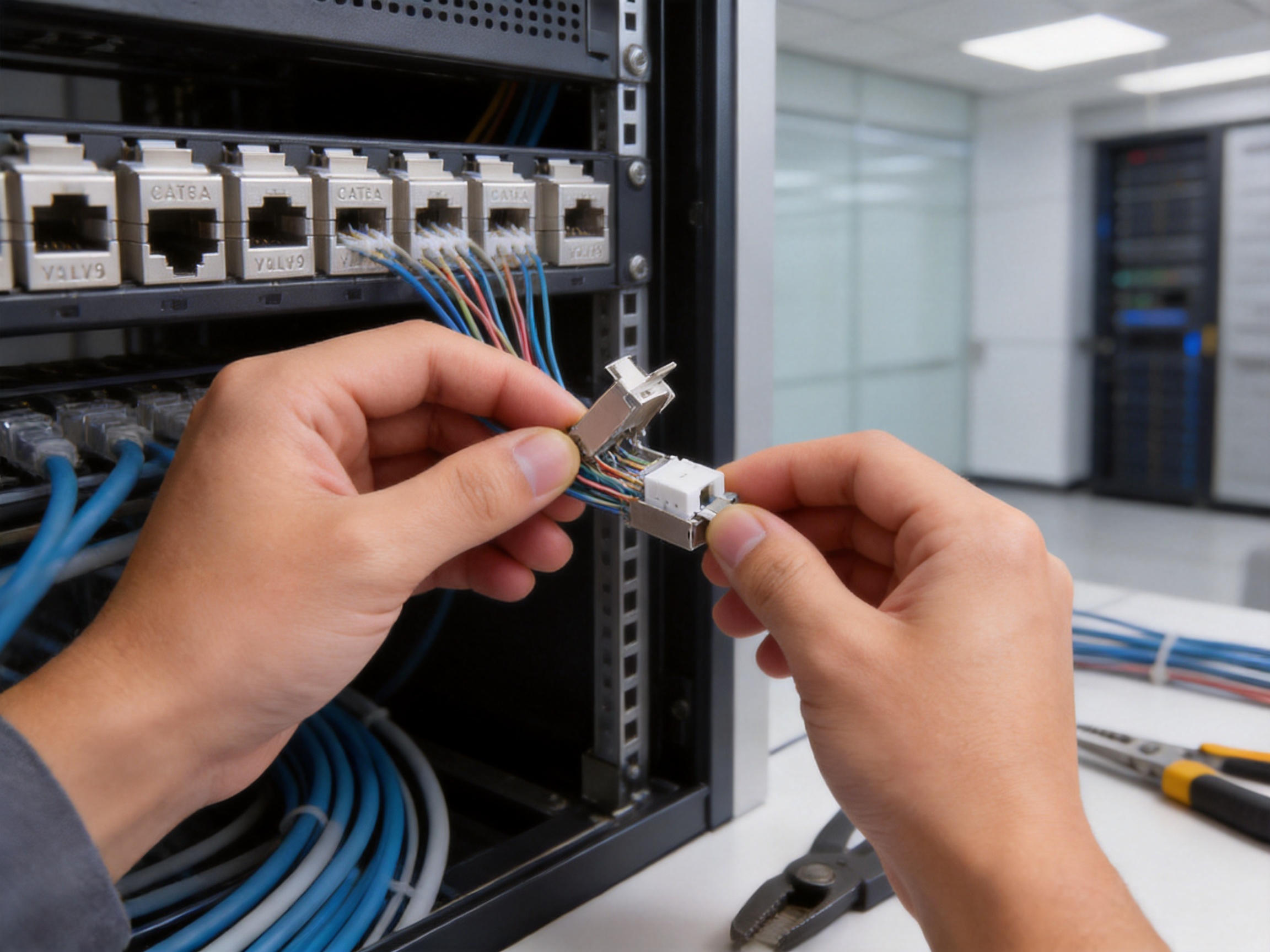

Professional Installation Considerations

To achieve the best performance, this keystone jack should be installed as part of a complete structured cabling system. Installers should select compatible CAT6A shielded twisted-pair cable, shielded patch panels, shielded patch cords, and appropriate grounding components. The shielding path should be continuous and correctly bonded according to project requirements and relevant standards.

During termination, the installer should follow either T568A or T568B consistently across the system. Mixing wiring schemes in the same channel can cause connection failures or performance issues. The clear label on the jack helps prevent this problem.

The cable jacket should be prepared carefully to avoid damaging conductor insulation or excessive untwisting. Pair twist should be maintained as close as practical to the termination point. Excessive untwisting can increase crosstalk and reduce high-frequency performance. Although the toolless structure simplifies termination, good cabling practice remains essential.

The 90 degree orientation should be used to guide the cable naturally without violating bending radius requirements. Cables should not be sharply folded, compressed, or tightly tied. Proper cable management protects conductor geometry and supports long-term performance.

After installation, professional testing is recommended. Certification testing can verify channel performance against the required category level. This is especially important for CAT6A projects, where high-frequency margins can be affected by installation quality.

Q&A Section

What is the main purpose of this 90 degree shielded CAT6A toolless keystone jack?

Its main purpose is to provide a reliable RJ45 termination point for CAT6A copper structured cabling systems. It connects horizontal cabling to work-area outlets, patch panels, data sockets, and network equipment through patch cords. It is suitable for high-performance communication systems requiring stable transmission up to 500 MHz.

Why is the 90 degree design useful?

The 90 degree design helps route cables more conveniently in limited spaces such as wall boxes, floor boxes, patch panels, and distribution frames. It reduces cable stress, supports better cable management, and helps protect the cable bending radius compared with some straight-entry modules.

What does toolless termination mean?

Toolless termination means the conductors can be pressed into the IDC contact area using the module’s termination mechanism rather than a separate punch-down tool. This can save installation time, improve consistency, and reduce the chance of errors caused by improper tool force.

Is the product compatible with both T568A and T568B wiring?

Yes. The product supports both T568A and T568B wiring sequences. The universal wiring label is clearly marked on the module card wire area, helping installers complete accurate and fast termination.

Can this CAT6A keystone jack be used with CAT6 or CAT5e systems?

Yes. It has backward compatibility and can be used with CAT6, CAT5e, and lower category copper cabling systems. This makes it useful for upgrade projects and mixed infrastructure environments.

Why is shielding important for this product?

Shielding helps reduce the influence of electromagnetic interference and supports more stable data transmission, especially in high-density cabling, office buildings, equipment rooms, automation areas, and environments with nearby electrical equipment. For best results, the jack should be used with compatible shielded cables, patch panels, and patch cords.

What conductor sizes does the IDC terminal support?

The IDC terminal is designed to clamp 23 to 26 AWG twisted-pair conductors. This range is suitable for many standard copper horizontal cabling applications.

What materials are used in the product?

The gold needle contacts are phosphor bronze with gold plating, the IDC terminals are phosphor bronze with nickel plating, the plastic body is PC polycarbonate, and the PCB material is FR4. These materials support conductivity, durability, dimensional stability, and long-term reliability.

How durable is the RJ45 interface?

The plug and socket interface is rated for 750 insertion cycles. This makes it suitable for installations where patch cords may be connected and disconnected during maintenance, relocation, or equipment changes.

What is the rated frequency range?

The frequency range is 1 MHz to 500 MHz, which aligns with CAT6A-level transmission requirements when used in a compatible structured cabling system.

What environmental conditions can it handle?

The product is designed for an operating temperature range from -25°C to +70°C and humidity not more than 85%. It also meets ROHS requirements and includes corrosion-resistance considerations such as salt spray test conditions.

How is the product packaged?

The product is placed into a special blister bag and then into a cardboard box with accessories. The regular packing quantity is 50 pieces per box, 10 boxes per carton, and 500 pieces per carton.

What makes the manufacturer competitive?

The manufacturer has nearly 20 years of experience, more than 10 engineers, over 30 technical personnel, 10 regular and customized production lines, 10 fully automatic injection molding machines, 20 semi-automatic injection molding machines, and 8 automatic assembly machines. This production foundation supports stable quality, high output, and OEM or ODM customization.

Conclusion

The SMT-1048T8C6A-FTP 90 Degree Shielded CAT6A Toolless Keystone Jack is a compact, efficient, and performance-focused component for modern copper structured cabling systems. It combines CAT6A transmission capability, shielded FTP protection, 90 degree cable routing, toolless IDC termination, T568A and T568B wiring compatibility, and durable material construction.

Its advantages over many conventional jacks are clear. It is easier to install than tool-required modules, better protected than unshielded alternatives, more future-ready than lower-category jacks, and more practical in confined spaces than many straight-entry designs. High and low staggered contact technology helps reduce near-end crosstalk, while gold-plated phosphor bronze contacts and nickel-plated IDC terminals support reliable long-term performance.

Behind the product is a manufacturing system with strong engineering, automated production, advanced injection molding capacity, automatic assembly equipment, and large-scale output. The company’s experience in network cabling solutions, quality control, OEM and ODM projects, and international markets strengthens the product’s value for distributors, contractors, system integrators, and end users.

For projects that require stable high-frequency performance, fast installation, shielded reliability, and professional modular deployment, this 90 degree shielded CAT6A toolless keystone jack is a strong choice. It is not simply a connector; it is a critical link in building a dependable network infrastructure prepared for today’s communication needs and tomorrow’s bandwidth growth.
