180-Degree Shielded CAT6A Toolless Keystone Jack: A Practical Guide to High-Performance Structured Cabling

Modern networks depend on more than switches, routers, and active electronics. The quality of the passive cabling system has a direct influence on installation efficiency, signal integrity, serviceability, and long-term operating cost. A keystone jack is a small component, but it performs an important function at the connection point between horizontal cable and patching, outlet, or equipment infrastructure. When the jack is designed for high-bandwidth Category 6A networks, shielded environments, and fast field termination, its mechanical and electrical characteristics become especially important.

The SMT-1065T8C6A-FTP 180 degree shielded CAT6A toolless keystone jack is developed for structured cabling applications that require reliable performance, convenient installation, and effective protection against electromagnetic interference. Its 180-degree configuration supports practical cable routing, while the shielded construction is intended for installations where protection from external interference and improved grounding continuity are important. The toolless termination concept also helps reduce installation time and eliminates the need for a dedicated punch-down tool during normal field assembly.

This article examines the product’s design, application value, installation advantages, manufacturing background, quality approach, and suitability for professional copper cabling systems. It also explains how a specialized manufacturer with experience in network communication equipment can support distributors, contractors, system integrators, original equipment manufacturers, and customized project requirements.

1. The Role of a CAT6A Keystone Jack in a Structured Cabling System

A structured cabling system is built from multiple interconnected elements, including copper cable, fiber cable, patch panels, information outlets, face plates, keystone jacks, patch cords, cabinets, racks, and cable management accessories. Each component must work as part of a coordinated channel. The keystone jack is usually installed in a patch panel, wall plate, surface box, floor box, or modular outlet assembly. It provides a standardized interface for connecting twisted-pair horizontal cable to an Ethernet patch cord or other compatible networking equipment.

Category 6A cabling is commonly selected for demanding network applications, including high-speed Ethernet, data centers, enterprise networks, industrial automation, intelligent buildings, wireless access point backhaul, surveillance systems, and server-room infrastructure. Compared with lower-category cabling, Category 6A designs are intended to support higher transmission performance and improved resistance to alien crosstalk when the complete system is properly engineered and installed.

The keystone jack must therefore do more than provide a convenient socket. It must maintain the geometry of the twisted pairs, control conductor termination, preserve pair separation, support appropriate cable management, and provide a stable interface for repeated patch cord insertion and removal. In shielded systems, the jack must also contribute to the continuity of the overall shielding and grounding design.

A poorly designed or incorrectly installed jack can create unnecessary risks. Excessive untwisting, inconsistent termination, loose contacts, weak housing materials, or poor cable retention may reduce the reliability of the connection. For this reason, selecting a suitable CAT6A keystone jack is an important part of a complete network cabling strategy rather than a minor purchasing decision.

2. Product Overview

The SMT-1065T8C6A-FTP is a shielded CAT6A keystone jack with a 180-degree structure and toolless termination design. The product is intended to provide a practical connection point for CAT6A twisted-pair cabling while supporting fast installation and organized cable routing.

The term “180 degree” refers to the orientation of the cable entry and termination structure. A straight or 180-degree configuration can be useful where the cable approaches the outlet or patching position from a predictable direction. It may help installers organize the cable path, reduce unnecessary bending, and align the termination area with the available space inside a face plate, patch panel, or enclosure.

The “shielded” construction is suitable for installations where the cabling design calls for improved protection against electromagnetic interference. A shielded jack may be used with compatible shielded cable, patch panels, patch cords, and grounding components to create a continuous shielding path. The complete system must be correctly bonded and installed; a shielded jack alone cannot compensate for an incomplete or improperly designed grounding system.

The “toolless” feature is intended to simplify termination. Instead of relying on a conventional punch-down tool, the installer positions the conductors according to the required wiring scheme and closes the termination mechanism. This can be especially useful for field technicians working in confined spaces, retrofit projects, quick-turn installations, and locations where carrying additional tools is inconvenient.

The product belongs to the CAT6A Keystone Jack category and can be integrated into compatible modular structured cabling systems. Its applications may include commercial buildings, office networks, schools, hotels, healthcare facilities, data communication rooms, industrial sites, residential smart-home systems, and other environments requiring organized copper connectivity.

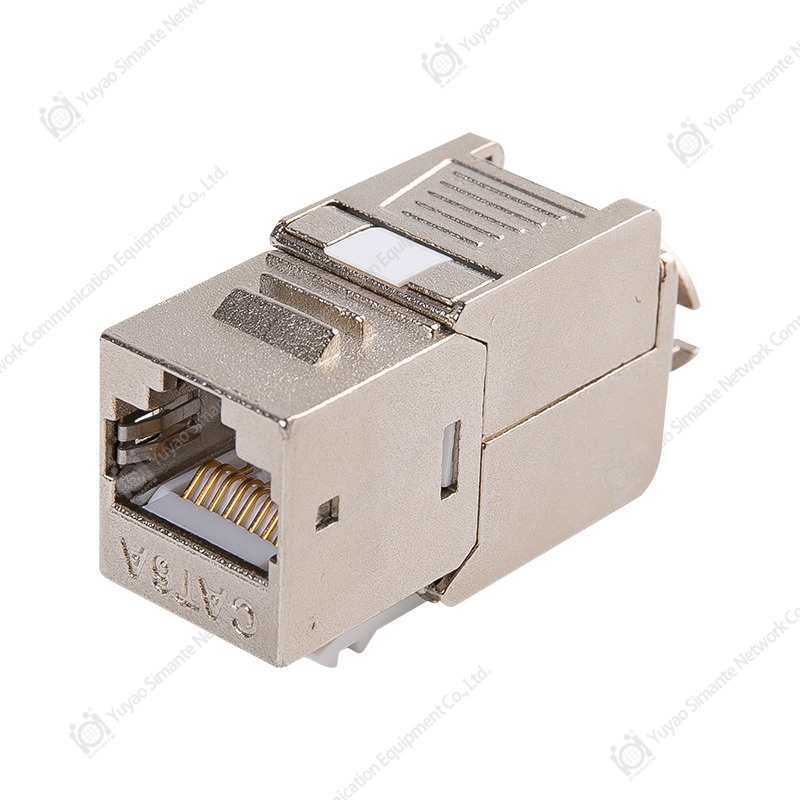

SMT-1065T8C6A-FTP 180 degree shielded CAT6A toolless keystone jack

3. Main Design Advantages

3.1 Toolless Termination for Faster Installation

The most visible advantage of the product is its toolless termination method. Traditional termination processes often require a punch-down tool, careful striking force, and sufficient working space. A toolless design can make the process more convenient by allowing conductors to be positioned and secured through an integrated closing mechanism.

Reducing the number of required tools can improve installation efficiency in several ways. First, technicians can move more quickly between connection points. Second, the risk of using an unsuitable or poorly adjusted tool is reduced. Third, the termination process can be more convenient in wall cavities, compact enclosures, ceiling spaces, and crowded racks. Fourth, the simplified method can make training easier for new installers when clear termination instructions are provided.

Toolless construction does not mean that installation quality is automatic. The cable jacket must still be prepared correctly, the wire pairs must be arranged according to the designated wiring standard, and the conductor positions must be checked before the termination mechanism is closed. However, a well-designed toolless jack can make the procedure more repeatable and less physically demanding.

3.2 Shielding for Electromagnetic Compatibility

Electrical equipment, motors, power supplies, lighting systems, industrial machinery, and high-density data infrastructure can generate electromagnetic fields. In environments with significant electrical activity, network designers may specify shielded cabling to help reduce the influence of external interference and limit unwanted emissions from the cable system.

The shielded structure of the SMT-1065T8C6A-FTP is intended for use in compatible shielded channels. When the jack is combined with shielded CAT6A cable, shielded patch panels, grounded racks, and suitable patch cords, the metal path can support continuity across the cabling infrastructure. This can contribute to more predictable operation in applications where electromagnetic compatibility is a design consideration.

Shielding performance depends on the complete system. Installers should verify that cable screens, connectors, patch panels, racks, and grounding conductors are compatible. They should also follow local electrical and cabling requirements. A shield should not be treated as a substitute for proper separation from high-voltage wiring, correct bonding, or appropriate cable routing.

3.3 180-Degree Cable Organization

The 180-degree layout offers a straightforward cable path for many outlet and patching applications. A predictable cable entry direction can simplify the organization of conductors inside a face plate or panel. It may also help the installer maintain a controlled bend radius and reduce unnecessary twisting at the rear of the jack.

Good cable geometry is important for high-frequency copper transmission. Excessive bending, sharp kinks, crushed cable jackets, and unnecessary untwisting can affect the performance of twisted-pair systems. A practical jack layout supports better workmanship by giving the installer a clearer path from the cable entry point to the termination area.

The actual suitability of the 180-degree configuration depends on the project layout. It is particularly useful where the cable approaches from the rear or directly behind the outlet. For angled or highly congested installations, a different orientation may be more appropriate. Selecting the correct form factor in advance can reduce installation adjustments and improve the finished appearance of the cabling system.

3.4 Modular Keystone Compatibility

The keystone format is widely used because it allows different connectivity modules to be installed in common face plates, patch panels, and modular accessories. A CAT6A jack can be combined with other modules, such as fiber adapters, telephone connectors, audio interfaces, or network service outlets, depending on the supporting hardware.

This modularity simplifies project planning. A contractor or system integrator can use a consistent face plate or panel design while selecting the appropriate jack type for each service. It also supports future changes because individual modules may be replaced without rebuilding the entire outlet assembly.

Before installation, the technician should verify the physical compatibility of the jack with the selected face plate, patch panel, surface box, or adapter. Compatibility may depend on the opening dimensions, retaining clips, rear clearance, cable entry direction, and shielding contact arrangement.

3.5 Support for Professional Cable Workmanship

A high-quality jack should support the basic principles of professional structured cabling: limited pair untwist, clear conductor identification, secure cable retention, stable contact pressure, and consistent mechanical assembly. These features help the installer produce a neat and repeatable termination.

In practical projects, installation consistency is as important as the nominal specifications of a component. A jack that is easy to understand and quick to terminate can help reduce variation between technicians. Consistent workmanship can lower the chance of intermittent connections, rework, and troubleshooting after commissioning.

4. Comparison with Conventional Keystone Jack Designs

The SMT-1065T8C6A-FTP can be compared with several common alternatives: unshielded jacks, conventional punch-down jacks, lower-category jacks, and non-modular connection solutions. Each alternative may be appropriate in certain circumstances, but the 180-degree shielded toolless design offers a combination of features aimed at demanding and efficiency-focused installations.

Design consideration	180-degree shielded CAT6A toolless jack	Typical unshielded jack	Conventional punch-down jack
Termination method	Integrated toolless termination mechanism	May be toolless or tool-based	Usually requires a punch-down tool
Shielding	Metal shield structure for compatible shielded systems	Generally no metal shielding path	May be shielded or unshielded depending on model
Cable orientation	180-degree rear cable entry and termination layout	Varies by design	Varies by design
Installation convenience	Designed for fast field termination and organized routing	Convenient when environmental protection is not required	Can require more tools and working space
Typical application focus	CAT6A structured cabling and interference-sensitive environments	General office and residential networks	Traditional structured cabling installations
System planning requirement	Requires compatible shielded cable and grounding design	Usually simpler grounding considerations	Depends on shielded or unshielded construction

The principal advantage is not that one design is universally superior to every other option. Instead, the advantage comes from matching several useful characteristics in one component. The product combines CAT6A positioning, shielding, a straight 180-degree layout, and toolless installation. This can reduce the need to compromise between installation speed, interference management, and structured modularity.

Compared with an unshielded jack, the shielded version is more appropriate when the project specification calls for a shielded channel. Compared with a conventional punch-down jack, the toolless model may reduce installation time and tool dependence. Compared with a lower-category jack, a CAT6A model is better aligned with higher-bandwidth infrastructure planning. Compared with a fixed proprietary outlet, the keystone format generally offers greater modular flexibility.

5. Installation Guidance

5.1 Confirm the Cabling Architecture

Before terminating the jack, installers should confirm the overall cabling architecture. The cable category, shielding type, patch panel, face plate, patch cord, rack bonding, and network equipment should be considered together. If a shielded jack is connected to an unshielded system, the expected shielding benefits may not be achieved. If a CAT6A jack is connected to lower-category components, the channel may be limited by the weakest element.

The installer should also confirm whether the project uses the T568A or T568B wiring scheme. Either scheme can be used when applied consistently, but the selected scheme should match the existing network infrastructure and project documentation.

5.2 Prepare the Cable Carefully

The cable should be cut to an appropriate length, leaving enough working room without creating excessive slack behind the outlet. The outer jacket should be removed carefully so that the internal conductors and separator are not damaged. The twisted pairs should remain twisted as close as practical to the termination point.

Pair untwist is a common source of avoidable performance loss. Installers should not spread the conductors farther than necessary. The cable should also be protected from sharp bends, crushing, and excessive pulling force. The minimum bend radius recommended for the cable should be respected throughout the installation.

5.3 Arrange and Terminate the Conductors

The conductors should be arranged according to the color code printed or molded on the jack. The technician should verify each position before closing the toolless termination mechanism. Conductors should be fully seated in their intended channels, and the cable should be held securely so that movement does not pull the pairs away from the contacts.

After termination, the installer should inspect the connection visually. The cable jacket should be retained as close to the termination area as the product design permits. The shield contact should be properly engaged with the cable screen or drain arrangement when required by the system design.

5.4 Install the Jack in the Modular Hardware

Once the cable is terminated, the jack can be installed in a compatible patch panel, wall plate, surface box, or other modular mounting position. The retaining clips should be fully engaged, and the jack should not be forced into an incompatible opening. The rear cable path should be arranged to avoid excessive pressure on the termination area.

In shielded installations, the metal body or shield contact should be checked for continuity with the surrounding shielded hardware. The rack, patch panel, and grounding system should follow the project’s electrical and telecommunications grounding requirements.

5.5 Test the Finished Link

Visual inspection is not enough for a professional installation. The completed link should be tested with suitable copper cabling test equipment. Depending on the project requirements, testing may include wire map, continuity, length, insertion loss, return loss, crosstalk, delay, resistance, and other relevant parameters.

Testing should be performed after the cable has been installed in its final position because movement, bending, and patching can influence the result. Test records should be retained for commissioning, maintenance, and future troubleshooting.

6. Applications

6.1 Enterprise Offices

Modern offices require reliable connectivity for computers, wireless access points, voice systems, security devices, video conferencing, printers, and building management equipment. A modular CAT6A jack can be installed in work-area outlets, floor boxes, meeting rooms, and telecommunications rooms.

The toolless design may be valuable during office renovations or phased installations, where technicians must terminate a large number of outlets while working around existing furniture and occupied spaces. The shielded construction may also be useful in buildings with dense electrical equipment or complex cable routes.

6.2 Data and Equipment Rooms

In equipment rooms, structured cabling must be clearly organized and easy to maintain. Keystone jacks can be used in patch panels or modular distribution systems to create a flexible connection field. The 180-degree layout can assist with rear cable management when the panel design provides sufficient clearance.

Data rooms often contain numerous power supplies, servers, switches, and cooling systems. A carefully engineered shielded channel may be considered where electromagnetic compatibility, cable density, or local environmental conditions justify it. The complete installation must still observe separation, grounding, airflow, and rack management requirements.

6.3 Industrial Automation

Industrial sites may contain motors, variable-frequency drives, welding equipment, control cabinets, and other sources of electrical noise. In such environments, the use of shielded copper cabling can be part of a broader interference-control strategy. A shielded CAT6A keystone jack may be used in industrial offices, control rooms, automation cabinets, monitoring stations, and network distribution points where the physical environment is suitable.

Industrial applications require special attention to temperature, vibration, dust, moisture, chemical exposure, and mechanical protection. The product should be selected only when its environmental suitability matches the project requirements. Additional enclosures, cable glands, protective conduits, or industrial-rated components may be necessary.

6.4 Smart Buildings and Automation Systems

Smart buildings use network connections for access control, lighting management, environmental sensors, digital signage, surveillance, energy monitoring, and building automation. The number of connected devices continues to increase, making organized structured cabling more important.

A modular keystone system allows different services to be arranged in a consistent outlet format. CAT6A connectivity can provide a practical foundation for high-speed data and power-enabled network devices when the complete channel is designed and installed appropriately.

6.5 Education, Hospitality, and Healthcare Facilities

Schools, hotels, hospitals, and public buildings typically require a large number of network outlets distributed across many rooms and floors. The ability to terminate and replace modular jacks efficiently can simplify project work and later maintenance.

These environments may also have strict requirements for labeling, documentation, cleanliness, fire stopping, access control, and service continuity. A structured installation using standardized modular components can support organized maintenance and future expansion.

6.6 Residential and Smart-Home Networks

High-performance residential networks increasingly support streaming media, remote work, gaming, security cameras, wireless access points, home automation, and network storage. A CAT6A keystone jack can be used in home offices, media rooms, communications cabinets, and wall outlets.

In residential projects, the modular format allows the same style of face plate to support different services. The shielded version may be useful in selected environments, but homeowners and installers should consider whether shielded cable and a complete grounding path are practical for the building.

7. Manufacturing Strengths and Quality Management

The performance of a network component begins long before final assembly. It depends on product design, material selection, mold accuracy, process control, assembly consistency, testing, packaging, and technical support. The manufacturer of the SMT-1065T8C6A-FTP operates as a professional producer of network cabling solutions and optical fiber products, integrating design, development, sales, and service.

With nearly two decades of service experience, the company has developed a mature understanding of structured cabling applications and customer requirements. This experience is important because network components must satisfy both technical and practical demands. A product can have an attractive design, but it must also be manufacturable, repeatable, compatible with installation practices, and stable in volume production.

7.1 Engineering and Research Capability

The company maintains a research and development system supported by more than ten engineers and more than thirty full-time technical personnel. This technical organization can contribute to product design, mold development, manufacturing improvement, performance evaluation, and product updates.

For a keystone jack, engineering work may involve housing geometry, contact arrangement, shielding structure, conductor management, latch design, cable retention, and compatibility with modular accessories. Small dimensional changes can influence installation convenience and assembly reliability, which is why engineering control is important.

A dedicated technical team also helps the manufacturer respond to application feedback. Contractors may identify installation challenges, distributors may request packaging or labeling changes, and project customers may require customized colors, markings, or mechanical details. A manufacturer with internal engineering capabilities is better positioned to evaluate and implement such requirements.

7.2 Injection Molding Capability

The factory operates fully automatic and semi-automatic injection molding equipment. The reported equipment base includes ten fully automatic injection molding machines and twenty semi-automatic injection molding machines. Injection molding is central to the production of many network components because it creates the plastic housings, insulation structures, clips, covers, and other molded parts used in the final assembly.

Stable injection molding requires control of material preparation, temperature, pressure, cycle time, mold condition, cooling, and dimensional inspection. Consistency in these areas can help reduce variation in part dimensions and improve assembly fit. For modular products, accurate external dimensions are especially important because the finished jack must fit correctly into compatible panels and face plates.

Automatic equipment can support repeatability and production efficiency, while semi-automatic equipment may provide flexibility for different product designs, smaller production runs, or customized orders. The combination of equipment types can help a factory balance volume production with product variety.

7.3 Automated Assembly

The factory also operates multiple automatic installation machines. Automated or semi-automated assembly can help control the placement of contacts, clips, covers, shields, and other components. It can reduce variation caused by repetitive manual operations and support stable output over extended production periods.

Automation does not replace quality management. It must be supported by correct machine settings, preventive maintenance, operator supervision, first-piece inspection, in-process checks, and final testing. When these controls are combined, automation can improve production consistency and help meet the requirements of large orders.

7.4 Production Capacity

The company maintains ten regular and customization production lines and reports a stable annual output of more than nine million units. This capacity is relevant to distributors and project customers that need dependable supply over time. A product may be technically suitable, but insufficient production capability can create delays, substitutions, and inconsistent batches.

Multiple production lines also support product diversification. Standard products can be manufactured alongside customized items, helping the company serve both catalog demand and project-specific requirements. Capacity planning is particularly important for network infrastructure because projects may involve thousands of outlets installed according to a fixed construction schedule.

7.5 Performance Testing

Professional network products should be evaluated through appropriate performance testing rather than visual inspection alone. The company emphasizes performance testing to meet comprehensive customer requirements. Testing may be applied at different stages, including incoming material inspection, molded-part inspection, assembly inspection, electrical verification, mechanical inspection, and final product evaluation.

For a shielded CAT6A jack, relevant evaluation areas can include contact reliability, conductor termination, mechanical retention, modular fit, shield continuity, insertion and removal behavior, and compatibility with the intended cable system. The exact test program should correspond to the product specification, applicable industry standards, customer requirements, and target market regulations.

Customers should request the specific technical documentation and test evidence required for their project. Product performance is always dependent on the complete installed channel, including cable type, patch cords, patch panels, installation quality, grounding, and testing procedures.

8. Customization and OEM/ODM Support

Network infrastructure projects often require more than a standard catalog item. Customers may request custom colors, labels, logos, packaging, cable management features, mounting details, plating options, wiring labels, or special mechanical configurations. OEM and ODM capability can help customers adapt a product to their distribution strategy or project requirements.

Customization typically begins with a technical discussion covering the intended application, installation environment, required quantity, target performance, packaging, delivery schedule, and regulatory expectations. The manufacturer can then review feasibility, develop drawings or samples, evaluate tooling needs, and establish a production plan.

For distributors, customized packaging and labeling can support brand differentiation and inventory organization. For system integrators, customized markings can simplify project identification. For equipment manufacturers, a modified keystone jack may be integrated into a larger enclosure or connectivity platform.

Customization should not compromise core performance. Any change to the housing, contact system, shield, latch, or termination mechanism should be evaluated through suitable verification. A structured development process helps ensure that customized products remain consistent with their intended application.

9. Advantages for Distributors and Project Buyers

Distributors need products that are easy to explain, practical to stock, and reliable to supply. The SMT-1065T8C6A-FTP has a clear market position: a CAT6A keystone jack combining shielded construction, 180-degree orientation, and toolless installation. This combination can make it suitable for professional network installers seeking a higher-performance modular connection option.

Project buyers may benefit from the manufacturer’s integrated design and production capabilities. Working with a factory that manages product development, molding, assembly, testing, and service can simplify communication. It may also reduce the number of separate suppliers involved in a structured cabling program.

Stable manufacturing capacity can support large orders and repeat purchasing. Consistent technical documentation, packaging, product identification, and quality procedures can further improve project management. For international customers, experience in export markets can help the supplier understand the importance of shipping coordination, product labeling, communication, and after-sales service.

The company maintains export activity in Europe, Australia, Africa, the Middle East, and Southeast Asia. This international experience provides a foundation for serving customers with different application conditions and purchasing processes. Customers should still confirm market-specific approvals, documentation, and installation requirements before placing an order.

10. Product Selection Checklist

When evaluating a CAT6A keystone jack, buyers should review more than the product name. The following points can help determine whether a product is suitable for a specific project.

10.1 Category and Channel Requirements

Confirm that the jack is intended for the required cabling category and transmission application. The channel should be designed as a complete system. Cable, patch cords, patch panels, and jacks should be selected for compatible performance.

10.2 Shielding and Grounding

Determine whether the installation requires shielded or unshielded connectivity. If shielded connectivity is selected, confirm the type of cable screen, connector shield, patch panel, rack bonding, and grounding arrangement. A shielded system should be installed according to applicable telecommunications and electrical practices.

10.3 Physical Compatibility

Check the jack dimensions, retaining clips, face plate openings, patch panel format, rear clearance, and cable entry direction. The 180-degree design should match the available space and the direction from which the cable approaches.

10.4 Termination Method

Evaluate whether the toolless mechanism is appropriate for the installer’s workflow. Review the termination instructions, wire range, conductor compatibility, cable diameter range, and required preparation steps. Toolless designs can improve convenience, but they still require careful workmanship.

10.5 Environmental Conditions

Consider temperature, humidity, dust, vibration, chemical exposure, mechanical impact, and installation location. If the jack will be placed in a harsh industrial or outdoor environment, verify whether additional environmental protection is required.

10.6 Documentation and Testing

Request technical drawings, installation instructions, test information, packaging specifications, and any available compliance documentation relevant to the target market. Clear documentation supports proper installation and reduces uncertainty during project approval.

11. Maintenance and Long-Term Reliability

Even a well-designed keystone jack requires appropriate maintenance practices. Ports should be protected from dust and unnecessary mechanical stress. Patch cords should be routed without pulling directly on the jack. Cable bundles should be supported so that their weight does not load the rear termination area.

When a jack is replaced, the technician should confirm the wiring scheme, cable condition, shield continuity, and labeling. A replacement component should match the category and shielding requirements of the existing channel. Mixing incompatible components can create uncertainty during future testing.

Network administrators should maintain records of outlet identifiers, patch panel positions, cable routes, test results, and repair history. Good documentation can shorten troubleshooting time and support orderly expansion. Because keystone jacks are modular, individual outlets can usually be serviced without replacing an entire face plate or panel, provided that compatible spare parts are available.

Repeated insertion and removal of patch cords can eventually cause wear on any connector. Ports that show loose fit, visible damage, intermittent operation, or abnormal test results should be inspected and replaced as necessary. Preventive maintenance is usually less disruptive than waiting for a connection to fail during critical network operation.

12. Why Manufacturing Integration Matters

Network connectivity products combine mechanical, electrical, and production requirements. The housing must fit. The contacts must align. The cable termination must be practical. The shield must remain continuous. The assembly must survive normal handling. The final product must be available in the required quantity and delivered with consistent identification.

When design, molding, assembly, testing, and service are managed within an integrated manufacturing organization, problems can be addressed more directly. Design engineers can communicate with production teams. Quality personnel can trace process issues. Customer service staff can coordinate technical feedback. Production planning can respond more effectively to changes in demand.

The manufacturer’s combination of engineering personnel, injection molding equipment, automatic installation machines, regular production lines, customization lines, and performance testing supports this integrated approach. It is particularly valuable for customers purchasing multiple network components, such as keystone jacks, patch panels, wall face plates, data sockets, and optical fiber products.

For customers seeking a long-term supplier, manufacturing depth can be as important as the specification of one individual product. A supplier capable of updating products, supporting OEM and ODM projects, maintaining output, and responding to technical questions can contribute value throughout the life of a cabling program.

13. Frequently Asked Questions

What is the SMT-1065T8C6A-FTP?

It is a 180-degree shielded CAT6A toolless keystone jack designed for structured copper cabling systems. It provides a modular connection point for compatible CAT6A twisted-pair cable and network patch cords.

What does “toolless” mean in this product?

Toolless means that the conductors can generally be terminated using the jack’s integrated termination mechanism rather than a separate punch-down tool. The installer must still prepare the cable, follow the wiring code, seat the conductors correctly, and inspect the finished termination.

What is the benefit of the 180-degree design?

The 180-degree configuration provides a straight cable entry and termination orientation. It can help with cable routing, bend-radius control, rear clearance, and organized installation in compatible wall plates and patch panels.

Why choose a shielded CAT6A jack?

A shielded CAT6A jack may be appropriate when the project uses a shielded cabling channel or when electromagnetic compatibility is an important design consideration. The jack should be used with compatible shielded cable, patch panels, patch cords, and grounding arrangements.

Can the jack be used in an unshielded system?

Suitability depends on the project design and the compatibility of the surrounding hardware. A shielded jack is normally selected as part of a coordinated shielded channel. Buyers should confirm the installation requirements with the system designer or manufacturer before mixing shielded and unshielded components.

Does the product support both T568A and T568B?

The required wiring method should be confirmed from the product marking and technical documentation. In structured cabling, either T568A or T568B may be used when the selected scheme is applied consistently throughout the relevant system.

Where can this keystone jack be installed?

Typical locations include modular wall plates, patch panels, surface boxes, floor boxes, communication cabinets, office outlets, equipment rooms, smart-building systems, and other compatible structured cabling hardware.

Is the product suitable for industrial applications?

It may be suitable for selected industrial network applications where the environmental conditions are within the product’s capabilities. Industrial projects should evaluate electromagnetic interference, temperature, vibration, dust, moisture, mechanical protection, and grounding requirements before selection.

How should the finished connection be verified?

The completed link should be inspected and tested with appropriate copper cabling test equipment. Testing may include wire map, continuity, length, crosstalk, return loss, insertion loss, and other parameters required by the project specification.

Does the manufacturer provide customization?

The manufacturer undertakes OEM and ODM projects and operates regular and customization production lines. Customers should provide their required dimensions, markings, color, packaging, performance, quantity, and delivery information for a technical feasibility review.

What other products does the manufacturer produce?

The company’s product range includes keystone jacks, patch panels, wall face plates, data sockets, and optical fiber products. These products are used in structured cabling, network communication, smart-home, automation, and related applications.

What should buyers request before placing an order?

Buyers should request the product specification, dimensional drawing, installation instructions, cable compatibility information, shielding details, test documentation, packaging information, sample availability, lead time, and any market-specific compliance documents required for the project.

14. Conclusion

The SMT-1065T8C6A-FTP 180-degree shielded CAT6A toolless keystone jack is designed for structured cabling applications that value high-performance copper connectivity, practical installation, modular flexibility, and interference-conscious system planning. Its combination of CAT6A positioning, shielded construction, straight 180-degree cable organization, and toolless termination provides a balanced solution for commercial, industrial, institutional, residential, and smart-building networks.

The product’s value is strengthened by the manufacturing capabilities behind it. A mature research and development system, experienced engineering personnel, injection molding resources, automated assembly equipment, multiple production lines, performance testing, and OEM/ODM support provide a foundation for consistent supply and continued product development.

For the best results, the jack should be selected as part of a complete channel design. Cable category, shield continuity, grounding, modular compatibility, installation technique, bend radius, and final testing all influence network performance. When these factors are managed correctly, the product can help contractors reduce installation effort, improve cable organization, and deliver a dependable structured cabling infrastructure.

References

1. ISO/IEC 11801, Information Technology — Generic Cabling for Customer Premises.

2. ANSI/TIA-568 Series, Telecommunications Cabling Standards for Commercial Buildings.

3. ANSI/TIA-606, Administration Standard for Telecommunications Infrastructure.

4. ANSI/TIA-607, Generic Telecommunications Bonding and Grounding for Customer Premises.

5. IEC 60603-7 Series, Connectors for Electronic Equipment and Information Technology Applications.

6. Structured Cabling Installation and Testing Practices, industry training and commissioning guidance.

7. Manufacturer product information for the SMT-1065T8C6A-FTP 180-degree shielded CAT6A toolless keystone jack.

8. Manufacturer information concerning network cabling solutions, optical fiber products, production capability, customization, and quality management.
