86 Type Single Port Faceplate for Reliable Structured Cabling Installations

Modern communication networks depend on more than high-performance cable and active equipment. The physical interface between a horizontal cable, a communication module, and the user is equally important. A faceplate must provide a secure mounting point, support a clean and professional installation, protect the connector from dust and accidental contact, and remain stable through years of everyday use. The SMT-4320AP-86-1P 86 Type Single Port Faceplate is designed to fulfill these requirements in copper and fiber structured cabling environments.

This single-port faceplate is a wall-mounted component for common Type 86 exposed and concealed back boxes. It accepts information and telephone modules using an Amp interface, with a maximum capacity of one connector. Two standard M4 bolts are included as part of the mounting arrangement. The result is a compact and practical termination point for offices, homes, hotels, schools, commercial buildings, and other locations where a neat single-port network connection is required.

Manufactured by Yuyao Simante Network Communication Equipment Co., Ltd., the product reflects the company’s focus on network cabling solutions, optical fiber products, engineering plastics, injection molding, assembly, and customized production. Its design combines a concealed installation appearance with functional protection and convenient port identification. For distributors, system integrators, contractors, and original equipment customers, it offers a flexible component that can be integrated into a broad range of structured cabling projects.

Product Overview

The SMT-4320AP-86-1P is categorized as a one-port faceplate. Its primary purpose is to provide a finished wall outlet for one communication connector. Because it is compatible with common Type 86 exposed or concealed back boxes, it can be used in many standard interior installation situations without requiring an unusual mounting format.

The faceplate is intended for information and telephone modules compatible with the Amp interface. This gives installers the freedom to select the appropriate connector type for a particular project. Depending on the network design, the single port may be used for a copper data module, telephone module, or another compatible communication insert. The faceplate itself does not restrict the installation to one specific network application.

The product uses an embedded face-frame design. This construction helps conceal mounting screws from the visible front surface, producing a cleaner appearance than a basic externally fastened plate. At the same time, the design allows the faceplate to be installed and removed conveniently when maintenance, replacement, or reconfiguration is required.

A spring-type dust-proof door is provided at the front of the port. When the connector is not in use, the door helps reduce the entry of dust and other airborne particles. The front area also includes a logo window and a detachable logo plate. These features allow the port to be identified and managed more effectively, particularly in offices, server rooms, educational facilities, and larger building projects with many wall outlets.

The faceplate is manufactured from high-quality ABS engineering plastic. ABS is widely used for electrical and communication accessories because it offers a useful combination of strength, impact resistance, dimensional stability, and processability. In this product, the material supports a lightweight structure while helping the faceplate resist everyday collisions and handling during installation.

Environmental requirements are addressed through compliance with RoHS standards. The specified operating temperature range is -25°C to +70°C. These characteristics make the product suitable for a wide range of indoor applications and for locations where temperature conditions may vary during transportation, installation, or normal service.

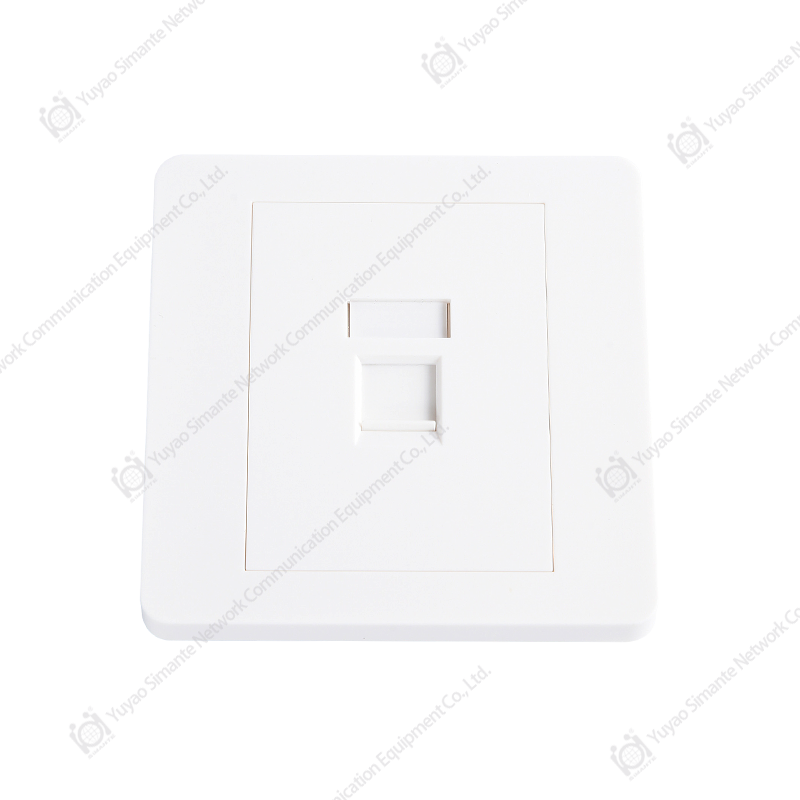

SMT-4320AP-86-1P 86 Type Single Port Faceplate

Why a Well-Designed Faceplate Matters

A faceplate may be a small component, but it has an important role in the overall quality of a cabling system. It is the visible termination point used by occupants, technicians, and maintenance teams. A poorly designed faceplate can create problems such as loose mounting, visible screws, difficult port identification, connector exposure, cracking, or deformation. These issues can make an otherwise well-designed network look unfinished and may increase the time required for maintenance.

A properly designed faceplate contributes to several aspects of structured cabling performance. First, it supports the mechanical stability of the connector. The communication module needs to remain firmly positioned when a patch cord is inserted or removed. Excessive movement can place stress on the module, cable termination, or surrounding wall box.

Second, the faceplate protects the connection area. A spring dust-proof door helps cover the unused port and reduces direct exposure to dust. In locations where the port is used intermittently, this feature is especially useful. It also creates a more consistent appearance across multiple outlets.

Third, the faceplate assists with administration. A detachable logo plate allows the installer or facility manager to identify the port according to room number, workstation, network function, or other project-specific information. Clear identification reduces troubleshooting time and helps prevent accidental disconnection of the wrong service.

Fourth, a quality faceplate contributes to the visual standard of the installation. The embedded frame and concealed screw arrangement produce a neat wall outlet that is appropriate for commercial offices, residential interiors, hospitality projects, and public buildings. Appearance is not merely decorative; it often reflects the care applied to the entire installation.

Key Design Advantages

Embedded Face Frame

The embedded face frame is one of the product’s most visible design advantages. Traditional wall plates may leave fasteners exposed, creating an industrial appearance or making the surface look unfinished. By embedding the frame and concealing the screws from the front, the SMT-4320AP-86-1P provides a cleaner interface with the surrounding wall.

This design also supports easier installation and disassembly. Installers can mount the product during the finishing stage of a project and remove it later when a module needs to be replaced or a cable requires inspection. A balance between appearance and serviceability is important because network outlets may need to be accessed several times during the life of a building.

Spring-Type Dust-Proof Door

The spring-type dust-proof door covers the port when it is not being used. Dust can accumulate around wall outlets, particularly in offices undergoing renovation, workshops, storage areas, and public spaces. Although a faceplate cannot replace proper environmental control, its protective door provides a useful first barrier against ordinary airborne particles.

The spring mechanism is also practical for frequent use. The door can move away when a compatible plug is inserted and return toward the closed position when the port is idle. This automatic action helps maintain a consistent appearance and reduces the need for users to handle a separate cover.

Logo Window and Detachable Logo Plate

Port identification is an essential part of structured cabling management. A single building may contain dozens or hundreds of outlets, and the ability to identify each one can make a significant difference during installation, inspection, and troubleshooting. The logo window at the front provides a dedicated location for identification information.

The detachable logo plate adds flexibility. Labels can be prepared according to the customer’s preferred numbering system, service designation, or room reference. When the network is upgraded or the use of a room changes, the marking can be updated without replacing the complete faceplate.

This feature is particularly valuable in projects that use multiple outlets with similar visual appearances. Clear labeling helps users select the correct port and helps technicians trace connections back to patch panels, distribution points, or network equipment.

One-Port Capacity

The one-port format is suitable for locations where a single network connection is sufficient or where wall space is limited. A compact single-port outlet can be installed beside electrical outlets, furniture, control panels, or other building services without occupying unnecessary space.

Single-port faceplates are also useful for modular project planning. A contractor may install exactly the number of outlets needed for each room rather than using a larger plate with unused openings. This can create a more balanced appearance and may reduce material waste.

Compatibility with Type 86 Back Boxes

Compatibility with common Type 86 exposed and concealed back boxes is a major practical benefit. Standardized mounting dimensions simplify procurement, installation planning, and replacement. Contractors familiar with Type 86 systems can incorporate the faceplate into existing workflows without requiring specialized wall preparation.

The product is compatible with information and telephone modules using the Amp interface. This modular approach separates the visible mounting plate from the communication insert. It allows the installer to select the suitable module while retaining a consistent faceplate design throughout the project.

ABS Engineering Plastic Construction

ABS engineering plastic is selected for its balance of mechanical and manufacturing properties. The material is lightweight, which helps reduce handling effort and shipping weight. It is also suitable for injection molding, allowing the manufacturer to produce repeatable shapes and integrated design details.

The stated product characteristics include collision resistance, impact resistance, and resistance to deformation. These properties are relevant during transportation, installation, and normal use. Wall outlets may be exposed to accidental contact from furniture, equipment, bags, cleaning tools, or occupants. A robust plastic housing helps the product retain its shape and appearance under ordinary service conditions.

Applications in Structured Cabling

The SMT-4320AP-86-1P can be used in a wide range of network and communication environments. In office buildings, it can serve individual workstations, meeting rooms, reception desks, and shared work areas. Its labeling features support organized port administration in facilities where many users share a common cabling infrastructure.

In residential installations, the faceplate can provide a neat data or telephone outlet in bedrooms, studies, living rooms, and home offices. Its compact format and concealed fastening arrangement are suitable for interiors where appearance is important.

Hotels and serviced apartments can use single-port faceplates for guest rooms, administrative offices, reception counters, and service areas. A dust-proof door can help maintain a clean appearance when the outlet is not connected, while the logo plate can support room-specific or service-specific identification.

Educational institutions may use the product in classrooms, laboratories, libraries, staff offices, and administrative spaces. Clear port identification can simplify moves, additions, and changes as rooms are reassigned or equipment layouts evolve.

Retail stores, medical offices, public buildings, and light commercial facilities can also benefit from the product. In each case, the faceplate provides a consistent and serviceable termination point for compatible network or telephone modules.

The faceplate may be included in copper structured cabling projects or selected as part of a broader copper and fiber system accessory portfolio. The faceplate itself is a passive mechanical component, but it supports the organization and usability of the complete cabling system.

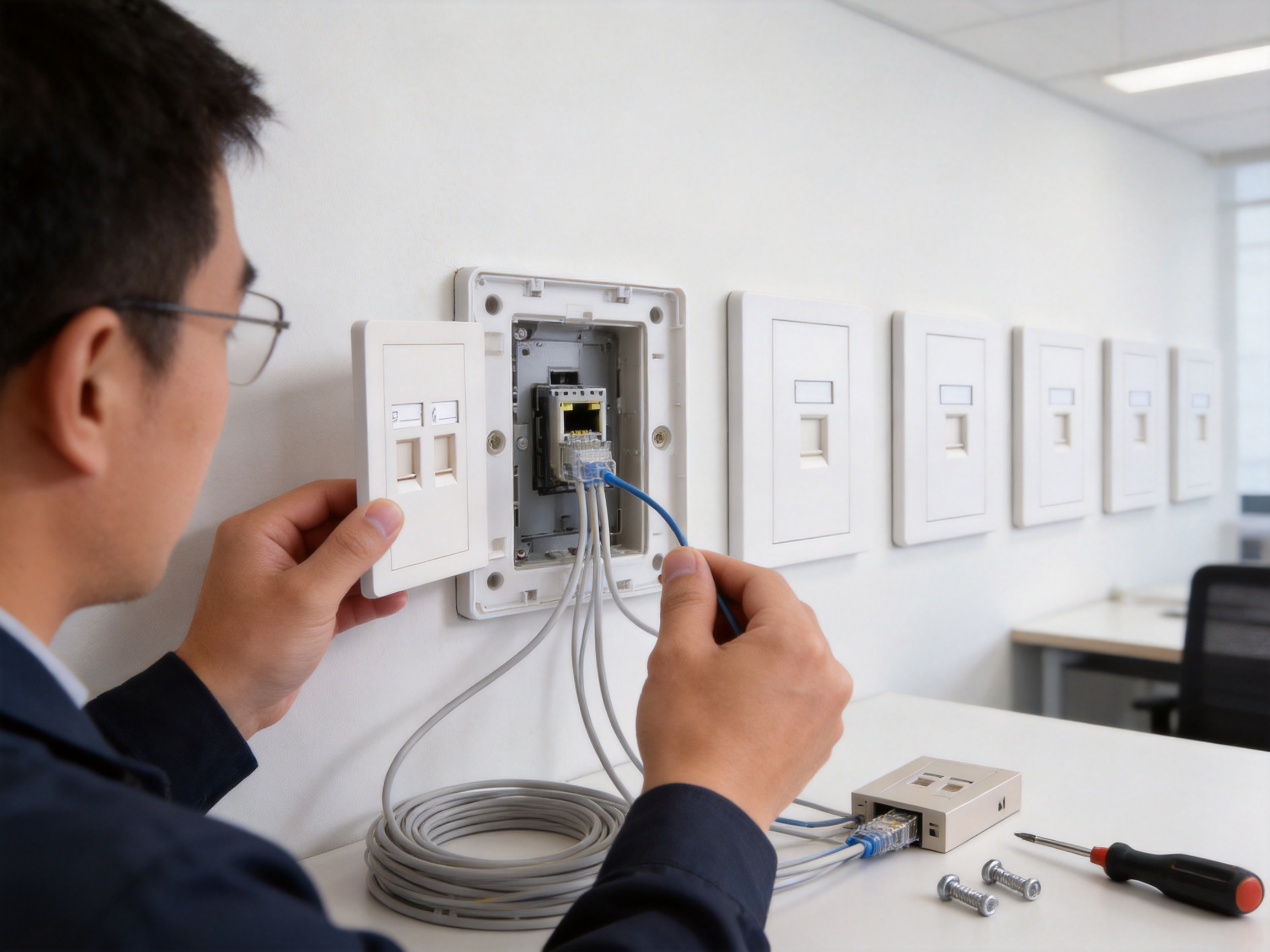

Installation Considerations

Before installation, the contractor should confirm that the wall box is a compatible Type 86 exposed or concealed back box. The installer should also verify the selected communication module and confirm that it uses the compatible Amp interface. Proper compatibility checks reduce delays and help ensure that the module is held securely within the faceplate.

The wall box should be correctly aligned and firmly fixed. A misaligned or loose back box may cause the faceplate to sit unevenly, even when the faceplate itself has been manufactured accurately. The surrounding wall surface should be sufficiently finished to support a clean installation.

The communication cable should be prepared and terminated according to the module manufacturer’s instructions. Cable routing should avoid unnecessary sharp bends, excessive pulling force, and pressure on the connector. Although the faceplate provides the mounting interface, correct cable preparation remains essential to the performance of the complete link.

After the module is installed, the faceplate can be mounted using the standard M4 bolts. The bolts should be tightened sufficiently to hold the plate securely without applying excessive force. Over-tightening may damage the plastic housing, the threaded mounting point, or the back box. A balanced installation maintains both mechanical stability and a professional appearance.

Once mounted, the installer should check that the spring-type dust-proof door moves freely and returns to its intended position. The logo plate should be fitted with clear identification information. Finally, the outlet should be inspected for alignment, surface cleanliness, module retention, and visible damage.

Manufacturing Strengths Behind the Product

The product is manufactured by Yuyao Simante Network Communication Equipment Co., Ltd., a company specializing in network cabling solutions and optical fiber products. Its product range includes keystone jacks, patch panels, wall faceplates, data sockets, and related components used in structured cabling, network communication, smart home, and automation applications.

The company integrates design, development, sales, and service. This integrated structure can support closer coordination between customer requirements, product engineering, mold development, manufacturing, quality control, packaging, and after-sales communication. For products such as faceplates, where small details influence installation quality, an integrated development process can be valuable.

According to the supplied company information, the manufacturer has nearly 20 years of service experience in the field. It maintains a research and development system intended to establish product quality at the design source. This approach is important because material selection, wall thickness, fastener location, spring structure, logo plate design, and module retention all influence the usability of the finished product.

The company has more than 10 engineers and over 30 full-time technical personnel. These employees support product improvement, technical development, manufacturing operations, and quality enhancement. A dedicated technical team can help a manufacturer respond to changing interface requirements, packaging needs, customer specifications, and application conditions.

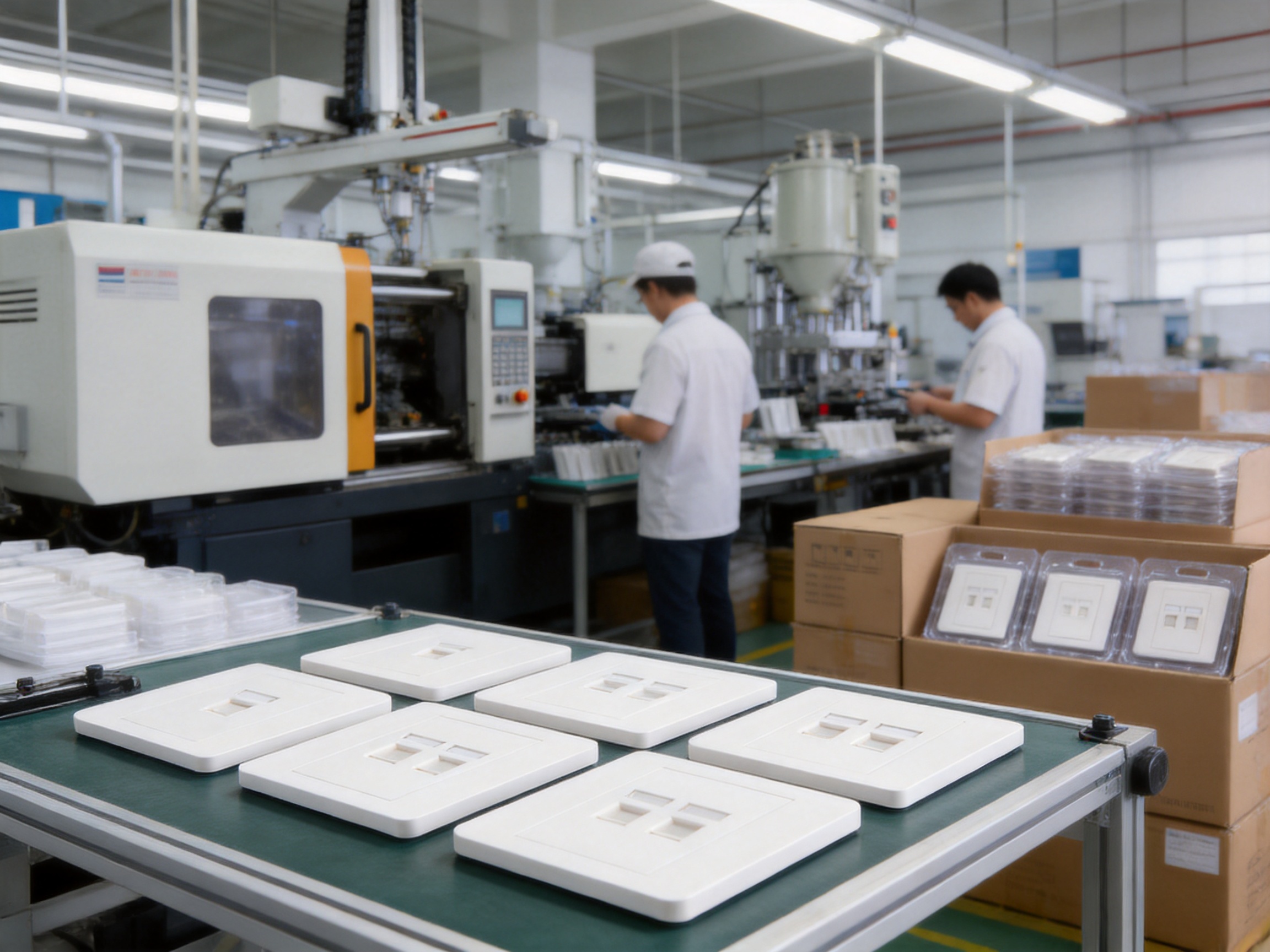

Injection Molding Capability

Plastic faceplates require consistent molding quality. Variations in dimensions, surface finish, screw locations, door alignment, or logo windows can create installation problems. The company operates automatic and semi-automatic injection molding equipment, including 10 fully automatic injection molding machines and 20 semi-automatic machines according to the provided information.

Injection molding enables the production of repeatable plastic housings with integrated structural features. It can support consistent dimensions across production batches when molds, material preparation, machine settings, and inspection procedures are properly controlled. For the SMT-4320AP-86-1P, stable molding is relevant to the fit of the embedded frame, the movement of the door, the placement of the logo plate, and the alignment of mounting features.

Automation can also support production efficiency and reduce unnecessary variation in repetitive operations. Semi-automatic equipment provides additional flexibility for product variants, smaller batches, customization, or operations that require closer operator involvement. The combination of automatic and semi-automatic machinery allows a manufacturer to balance capacity and flexibility.

Assembly and Installation Equipment

The company also operates various automatic installation machines. These machines can assist with repetitive assembly activities and help maintain consistent positioning of product components. For a faceplate that includes a spring-type dust-proof door, logo components, and other small parts, controlled assembly is important.

Mechanical components must be installed with appropriate orientation and movement. A door that is incorrectly positioned may fail to close properly, while an improperly fitted logo plate may become loose during use. Production equipment, combined with trained technical personnel and inspection procedures, helps reduce these risks.

Production Capacity and Customization

The supplied information states that the factory has 10 regular and customization production lines and maintains a stable annual output of more than 9 million units. This capacity supports both standard product supply and customer-specific production requirements.

Customization may involve packaging, labeling, color, markings, product combinations, or other project details, subject to technical evaluation and order requirements. The product information specifies customer-designated packaging as a note. This indicates that packaging arrangements can be adapted to customer needs where required.

For distributors and system integrators, production capacity can be important because network projects may require consistent deliveries over several stages. A supplier with multiple production lines may be better positioned to support regular replenishment, project schedules, and repeat orders.

Quality, Environmental, and Material Considerations

The faceplate is specified to meet RoHS environmental requirements. RoHS compliance addresses restrictions on certain hazardous substances in electrical and electronic products and supports the requirements of customers operating in regulated markets. Documentation and verification should be confirmed according to the customer’s purchasing and compliance procedures.

The use of ABS engineering plastic supports the product’s stated resistance to collision, impact, and deformation. Material consistency is important for both appearance and mechanical behavior. A faceplate with stable material properties is more likely to maintain its shape during installation and normal service.

The specified temperature range is -25°C to +70°C. This range provides guidance for product use and handling. The actual application should also consider humidity, direct sunlight, chemical exposure, installation location, and the environmental limits of the selected communication module.

Like other interior communication accessories, the faceplate should not be exposed to corrosive gases, strong chemicals, or unsuitable outdoor conditions unless the complete installation has been evaluated for those circumstances. Proper storage and handling help preserve the appearance and performance of the product before installation.

Packaging and Storage

The product is placed in a special blister bag and then packed in a cardboard box. Product accessories are placed together with the faceplate. A label indicating the product model and quantity is applied to the upper-left area of the carton front, supporting identification during warehousing and distribution.

The specified storage environment is a warehouse with an ambient temperature of -5°C to +30°C and relative humidity not exceeding 70 percent. The surrounding air should be free of acid, alkali, and other corrosive gases. Under these stated conditions, the storage period is three years.

The regular packing quantity is described as 10 boxes per box, 20 units per box, and 200 units per box. Buyers should confirm the exact carton configuration and labeling arrangement with the supplier before placing an order, especially when requesting customer-designated packaging or private labeling.

Good storage practice includes keeping cartons away from direct moisture, excessive heat, heavy compression, and corrosive materials. Cartons should be handled carefully to prevent crushing the blister packaging or damaging the faceplate surface. Products should be rotated according to the applicable warehouse management procedure.

Advantages for Distributors and System Integrators

For distributors, the SMT-4320AP-86-1P offers a practical product category with broad application potential. A one-port faceplate is a common requirement in structured cabling projects, and compatibility with a familiar Type 86 mounting format can simplify product selection for customers.

The faceplate’s modular compatibility allows distributors to offer it together with suitable information and telephone modules, patch panels, keystone jacks, and other cabling accessories. This can support the creation of coordinated product packages rather than isolated component sales.

For system integrators, the embedded frame, labeling features, and dust-proof door can help produce a consistent finish across a project. The faceplate is suitable for installations where the customer expects both functional reliability and an organized appearance.

For original equipment customers, the manufacturer’s production lines, engineering resources, injection molding capacity, and customization experience may provide a foundation for project-specific cooperation. Requirements should be discussed in advance, including drawings, materials, colors, markings, packaging, testing, and order quantities.

Comparison with Basic Faceplate Designs

The SMT-4320AP-86-1P provides several features that are not always present in basic faceplate designs. A simple plate may provide only a flat mounting surface and an opening for a connector. In comparison, this product combines a concealed mounting appearance, a spring-type dust-proof door, port identification features, and compatibility with a standard wall-box format.

Visible screws can interrupt the appearance of a finished interior and may collect dirt around the fastener heads. The embedded face frame addresses this issue by keeping the main mounting hardware out of direct view. At the same time, the plate remains removable for servicing.

A faceplate without a protective door leaves the connector area open when no patch cord is connected. The spring-type door offers an additional level of coverage and creates a more uniform appearance across unused outlets.

A plate without a logo window may require adhesive labels placed directly on the surface. Such labels can become difficult to replace, may leave residue, or may not provide a consistent visual standard. The dedicated logo window and detachable logo plate offer a more organized approach to port identification.

Some products may be designed around a fixed connector type. The compatibility of this faceplate with information and telephone modules using the Amp interface provides greater flexibility when planning different communication services within the same Type 86 outlet format.

These advantages do not eliminate the need to compare technical specifications for each project. Buyers should evaluate module compatibility, wall-box dimensions, material requirements, environmental conditions, color, certifications, packaging, and installation standards. However, the combination of features gives the SMT-4320AP-86-1P a strong practical position among single-port wall faceplates.

Design and Aesthetic Value

Network infrastructure is increasingly installed in visible areas. Workstations, conference rooms, homes, hotels, and public facilities often require communication outlets that blend with the surrounding interior. The clean front surface created by the embedded frame makes the product suitable for applications where visual quality is part of the project specification.

A consistent faceplate design can also improve the perceived quality of a complete cabling installation. When outlets are aligned, labeled, and free of visible fasteners, the result appears more deliberate and easier to manage. This can be particularly important in customer-facing spaces.

The compact single-port format helps avoid an oversized appearance where only one connection is needed. It can be installed individually or used as part of a coordinated outlet layout with other Type 86 products. The logo plate provides an additional opportunity to match the outlet identification method used throughout the building.

Maintenance and Long-Term Use

Routine maintenance should begin with a visual inspection of the faceplate, module, dust-proof door, and mounting area. The plate should remain firmly attached to the back box, and the connector should not move excessively during normal plug insertion and removal.

The front surface can be cleaned with a soft, dry cloth or a cleaning method approved for ABS plastic. Strong solvents, abrasive materials, and excessive liquid should be avoided unless specifically confirmed as suitable. Cleaning procedures should also respect the requirements of the installed communication module.

The spring-type door should be checked for free movement. If dust or debris prevents the door from closing, the area should be cleaned carefully. The door should not be forced beyond its intended movement range.

If the logo plate becomes damaged or the port assignment changes, it can be replaced or updated according to the product design. Clear identification should be maintained so that future technicians can understand the purpose and destination of the outlet.

When a communication module requires replacement, the embedded faceplate can be disassembled according to the installation procedure. Technicians should support the plate during removal and avoid pulling on the cable or forcing the module through the opening.

Project Selection Checklist

Before specifying the SMT-4320AP-86-1P, project planners should confirm the following points:

1. The installation uses a compatible Type 86 exposed or concealed back box.

2. The selected information or telephone module is compatible with the Amp interface.

3. A single-port configuration meets the connection requirements of the room or workstation.

4. The operating temperature and surrounding environmental conditions are within the stated product range.

5. The customer requires or accepts the specified ABS engineering plastic construction.

6. RoHS-related documentation is available or acceptable for the intended market.

7. The preferred labeling and logo identification method can be accommodated.

8. Packaging, carton quantities, and customer-designated packaging requirements are confirmed.

9. The storage location meets the specified temperature, humidity, and air-quality conditions.

10. The faceplate appearance, color, and installation method match the project’s architectural and technical requirements.

Company Capabilities and Supply Support

Yuyao Simante Network Communication Equipment Co., Ltd. positions itself as a professional manufacturer of network cabling solutions and optical fiber products. Its production scope includes components used in data cabling systems, network communication, smart home systems, and automation equipment.

The company’s engineering and technical teams support ongoing product development and improvement. Its manufacturing resources include multiple production lines, automatic and semi-automatic injection molding equipment, and automatic installation machinery. These capabilities are relevant to the consistent production of plastic faceplates and other structured cabling accessories.

The company reports stable export activity in Europe, Australia, Africa, the Middle East, and Southeast Asia. It also undertakes OEM and ODM projects. International supply experience can help customers coordinate product specifications, packaging requirements, export documentation, and project communication.

Customers requiring standard products can discuss model availability, order quantities, lead times, packaging, and inspection requirements. Customers requiring customized products can provide drawings, samples, branding instructions, material preferences, and intended applications for technical review.

Frequently Asked Questions

What is the SMT-4320AP-86-1P?

It is an 86 Type single-port wall-mounted faceplate for communication installations. It is designed for common Type 86 exposed or concealed back boxes and can accommodate one compatible information or telephone module.

How many connectors can be installed?

The faceplate supports a maximum of one connector. It is intended for single-port applications where one communication outlet is required.

Which modules are compatible with the faceplate?

The product is compatible with information and telephone modules using the Amp interface. The exact module should be confirmed before ordering to ensure dimensional and mechanical compatibility.

Are mounting bolts included?

Two M4 bolts are specified as standard for the mounting arrangement. Buyers should confirm the final accessory configuration when placing an order.

Does the faceplate have a protective cover?

Yes. It includes a spring-type dust-proof door that helps cover the port when it is not in use.

Can the port be labeled?

Yes. The front includes a logo window and a detachable logo plate. These features support port identification and administration.

What material is used?

The faceplate uses high-quality ABS engineering plastic. The material is described as resistant to collision and impact and not easily deformed under normal conditions.

What is the operating temperature range?

The stated environmental temperature range is -25°C to +70°C. The complete installation should also consider the limits of the communication module and the surrounding environment.

Does the product meet environmental requirements?

The product is specified to meet RoHS standards. Customers should request the appropriate compliance information for their market and project documentation requirements.

Where can the faceplate be used?

It can be used in offices, homes, hotels, schools, commercial buildings, public facilities, and other indoor structured cabling applications that use compatible Type 86 back boxes and communication modules.

How is the product packaged?

The product is placed in a special blister bag, packed in a cardboard box, and supplied with its accessories. Cartons are labeled with the product model and quantity. Customer-designated packaging can be discussed with the manufacturer.

What are the storage requirements?

The specified warehouse conditions are -5°C to +30°C, relative humidity not exceeding 70 percent, and an atmosphere free from acid, alkali, and other corrosive gases. The stated storage period is three years under these conditions.

Can the manufacturer support OEM or ODM projects?

The company states that it undertakes OEM and ODM projects. Customized requirements should be submitted for evaluation, including product drawings, packaging, markings, materials, quantities, and applicable testing requirements.

Conclusion

The SMT-4320AP-86-1P 86 Type Single Port Faceplate is a practical component for organized and attractive communication outlet installations. Its compatibility with common Type 86 back boxes and Amp-interface information or telephone modules gives it broad application flexibility. The one-port format is appropriate for individual workstations, residential rooms, hotel spaces, classrooms, offices, and other locations where a compact connection point is required.

Its embedded face frame conceals visible screws and supports a clean installation. The spring-type dust-proof door helps protect the unused port, while the logo window and detachable logo plate improve identification and administration. ABS engineering plastic provides a lightweight housing with the stated advantages of impact resistance, collision resistance, and dimensional stability.

Behind the product is a manufacturer with experience in network cabling and optical fiber products, supported by engineering personnel, injection molding equipment, automatic installation machinery, multiple production lines, and customization capability. These resources can help support stable production for standard orders as well as tailored requirements for OEM, ODM, and customer-designated packaging projects.

For buyers seeking a single-port faceplate that combines functional protection, modular compatibility, professional appearance, and manufacturing support, this product is a suitable option for copper and structured cabling system applications.

References

1. Product specification information for SMT-4320AP-86-1P 86 Type Single Port Faceplate, including compatibility, construction, environmental conditions, packaging, and storage requirements.

2. Structured cabling installation practices for wall outlets, communication modules, labeling, and maintenance administration.

3. General technical information concerning ABS engineering plastics, injection molding, impact resistance, and dimensional stability.

4. RoHS environmental compliance principles for electrical and communication equipment.

5. Manufacturer information concerning network cabling solutions, optical fiber products, engineering resources, production lines, injection molding equipment, OEM, and ODM services.

Product: SMT-4320AP-86-1P 86 Type Single Port Faceplate
