180-Degree Shielded CAT8 Toolless Keystone Jack for High-Performance Structured Cabling

Modern communication networks demand more than basic connectivity. As data rates increase and installations become denser, every component in a structured cabling system must support reliable transmission, efficient installation, mechanical durability, electromagnetic compatibility, and long service life. The SMT-1061T8C8-FTP 180-Degree Shielded CAT8 Toolless Keystone Jack is designed to meet these requirements in commercial buildings, data rooms, industrial facilities, smart homes, automation systems, and other demanding network environments.

This CAT8 keystone jack combines a compact embedded form factor, a 180-degree termination orientation, toolless installation, full-metal shielding, high-quality contact materials, and compatibility with both T568A and T568B wiring sequences. It is engineered for applications requiring stable copper connectivity across frequencies from 1 to 500 MHz, while its zinc alloy shell helps reduce the effects of electromagnetic interference in high-density cable installations.

The product is manufactured by Yuyao Simante Network Communication Equipment Co., Ltd., a professional supplier of network cabling solutions and optical fiber products. With nearly two decades of experience, dedicated engineering personnel, multiple production lines, automated injection molding equipment, automatic assembly machinery, and established export capabilities, the company provides both standard products and customized OEM and ODM solutions.

Why CAT8 Keystone Jacks Matter in Modern Networks

Structured cabling is the physical foundation of a network. Switches, routers, servers, access points, cameras, sensors, and control systems may offer advanced performance, but their effectiveness depends on the quality of the connection between equipment and the cabling infrastructure. Keystone jacks play an important role because they provide a modular interface between horizontal cabling, patch cords, patch panels, wall outlets, and other network hardware.

A keystone jack must maintain electrical continuity while also managing mechanical stress, cable organization, shielding, and termination accuracy. In higher-performance systems, small design weaknesses can cause signal loss, impedance variation, near-end crosstalk, intermittent connections, and installation delays. These issues may be difficult to locate after a network is commissioned, making connector design and manufacturing quality especially important.

CAT8 systems are intended for high-bandwidth copper communication applications. They require careful control of contact geometry, conductor termination, pair separation, shielding, and grounding. The SMT-1061T8C8-FTP addresses these needs through an integrated design that combines an RJ45 interface with an IDC termination area and an all-metal protective enclosure.

Unlike a basic unshielded connector intended for ordinary office wiring, a fully shielded CAT8 keystone jack is suited to environments where electrical noise may be generated by motors, power supplies, lighting systems, industrial equipment, dense server racks, or other communication devices. Its 360-degree shielding shell creates a continuous protective enclosure around the connection area, supporting improved electromagnetic compatibility when correctly integrated with shielded cabling and grounded network hardware.

Product Overview

The SMT-1061T8C8-FTP is a 180-degree shielded CAT8 toolless keystone jack. Its embedded modular construction allows it to be installed into a compatible distribution frame, patch panel, wall plate, or other keystone-compatible housing. This modular approach simplifies system design because the same basic jack format can be used in different outlet and rack configurations.

The product supports the T568A and T568B wiring sequences. These universally recognized wiring arrangements allow installers to follow the wiring standard specified by the project or customer. A clearly marked universal wiring label is placed on the dust-resistant wire cover, helping installers identify conductor positions during termination.

The toolless termination concept is intended to make installation faster and more consistent. Instead of requiring a separate punch-down tool for each termination, the installer places the individual conductors into the correctly marked IDC slots and closes the termination cover. This can reduce the number of installation steps and help improve productivity in large projects.

The 180-degree configuration is useful where cable routing, panel depth, or installation access makes a straight or sharply angled termination inconvenient. By guiding the cable and termination area in a controlled direction, the design can support cleaner cable management and reduce unnecessary bending near the connector.

Product Attribute	Specification or Feature
Product type	Shielded CAT8 toolless keystone jack
Model	SMT-1061T8C8-FTP
Connection orientation	180-degree design
Interface	RJ45 jack with IDC termination
Transmission frequency range	1 to 500 MHz
Wiring compatibility	T568A and T568B
Shielding	360-degree all-round metal shielding
IDC conductor range	22 to 26 AWG twisted pair
Working voltage	125 V
Withstand voltage	DC 1000 V, or AC 750 V, for one minute
Plug and socket durability	750 insertion and withdrawal cycles
Wire termination durability	250 termination cycles
Operating temperature	-25°C to +70°C
Humidity requirement	Up to 85% under specified test conditions
Applicable general specification	YD/T 926.1-2009
Applicable sub-standard	YD/T 926.3-2009

SMT-1061T8C8-FTP 180 Degree Shielded CAT8 Toolless Keystone Jack

Key Advantage: Full 360-Degree Shielding

One of the most important characteristics of this keystone jack is its 360-degree all-round shielding shell. The shell is made from zinc alloy die-casting and is designed to surround the critical connection area with a conductive metal barrier. This construction helps limit the influence of external electromagnetic fields and supports more controlled signal transmission.

Electromagnetic interference can affect network performance when communication cables are installed close to power cables, electrical motors, fluorescent lighting, switching equipment, industrial controllers, or high-density electronic devices. In these environments, an unshielded connector may be more vulnerable to unwanted coupling. A shielded connector, when used with compatible shielded cable and properly grounded equipment, can help create a more complete protection system.

The shielding shell also provides mechanical protection. Zinc alloy is rigid and resistant to deformation, allowing the connector to withstand handling during installation and maintenance. Compared with a purely plastic housing, a metal shell can provide greater structural stability around the RJ45 interface and termination area.

The grounding design is another important part of the shielding system. A shield is most effective when electrical continuity is maintained across the connector, cable shield, patch panel, equipment chassis, and grounding path. The product incorporates a dedicated grounding structure intended to provide reliable and convenient grounding when used in a properly designed installation.

It is important to understand that a shielded keystone jack is one component of a complete electromagnetic compatibility strategy. The cable, patch panel, plugs, equipment, grounding system, and installation practices must also be compatible. The product’s metal shell provides the necessary connector-side foundation for shielded CAT8 cabling projects.

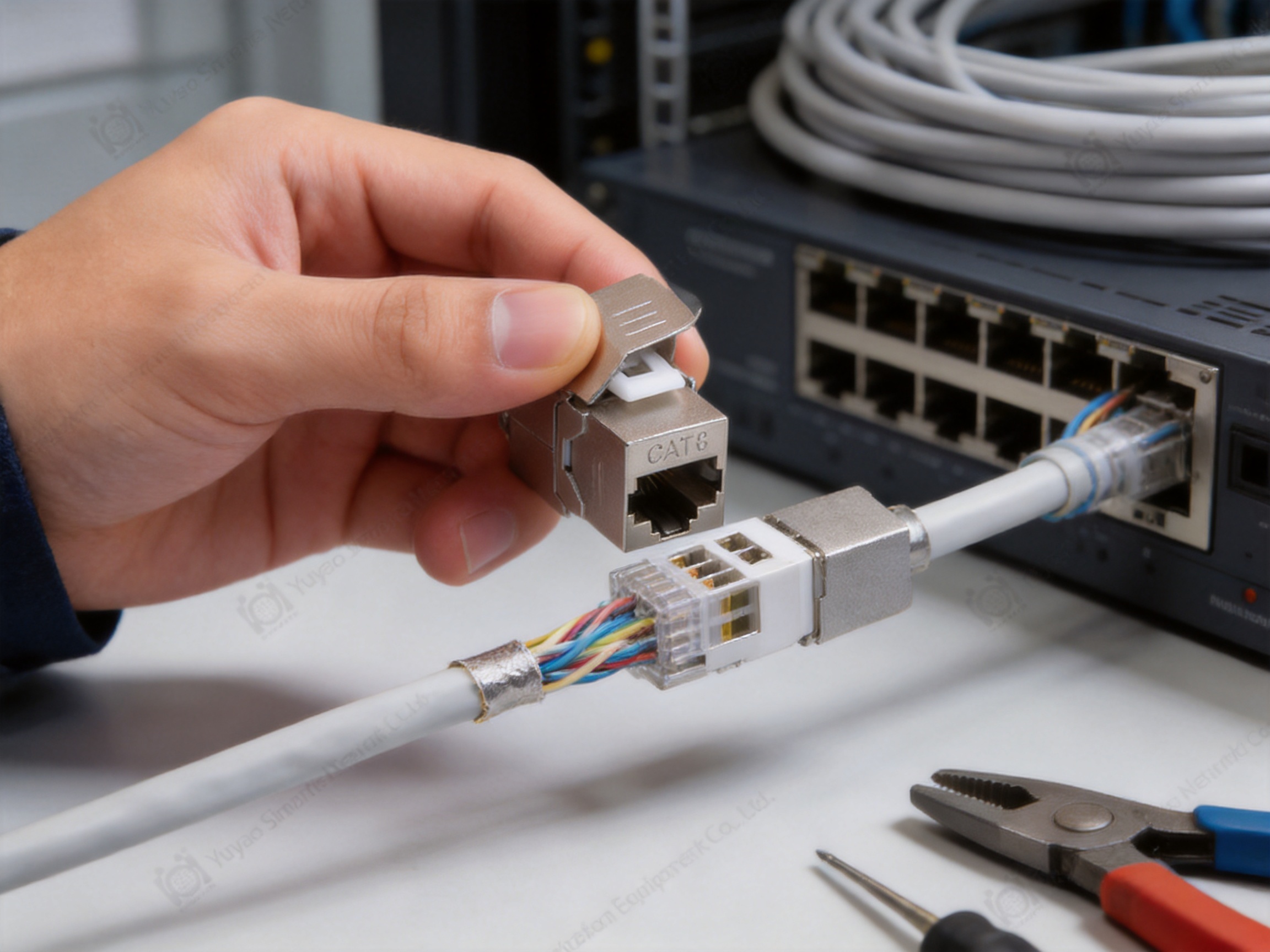

Toolless Termination for Efficient Installation

Installation efficiency has a direct effect on project cost. In a small office, the difference between a tool-assisted and tool-free termination may be modest. In a large commercial building, data center, school, hospital, factory, or residential development, hundreds or thousands of connection points may need to be completed. A termination method that reduces steps and simplifies conductor placement can deliver significant practical benefits.

The SMT-1061T8C8-FTP uses a tool-less IDC termination structure. The installer first removes the required amount of the cable jacket, separates the twisted pairs as necessary, and places each conductor into the corresponding IDC slot according to the T568A or T568B label. The cover is then closed to secure the conductors and complete the termination.

The clearly marked wire sequence label helps reduce the risk of placing conductors in the wrong positions. Because both common wiring schemes are identified, the installer can follow the project standard without relying on memory or separate reference material. This is especially useful when several types of network outlets are being installed in the same work area.

Toolless termination can also improve consistency among installation teams. Different technicians may apply different amounts of force when using manual punch-down tools. A guided cover and IDC system helps standardize the termination process. The installer still needs to follow approved procedures, maintain pair geometry, and verify the completed connection, but the connector design can make the basic operation more straightforward.

For maintenance teams, a tool-less system can reduce the amount of equipment required at the work site. This can be valuable in ceiling spaces, wall boxes, cabinets, and other locations where access is limited. It can also support faster reconfiguration when an office, production area, or equipment room is updated.

Transmission Performance and Contact Design

High-frequency copper transmission depends on more than the nominal category marking. The connector must control the electrical relationship between the plug contacts, internal conductors, printed circuit board elements, and IDC terminals. The product is designed for a frequency range of 1 to 500 MHz, corresponding to the transmission requirements associated with CAT8-oriented installations.

The contact pin arrangement uses high-and-low dislocation technology. This geometry is intended to improve the separation and electrical balance of adjacent signal paths, helping reduce near-end crosstalk. Crosstalk occurs when the signal from one pair or channel couples into another. Excessive crosstalk can reduce link margin, lower transmission stability, and create errors in high-speed communication.

The stated near-end crosstalk attenuation value is at least 4 dB under the specified product test conditions. Actual link performance depends on the complete channel, including the cable, plug, patch panel, installation length, bend radius, termination quality, and environmental conditions. Nevertheless, the connector’s internal contact arrangement is an important part of maintaining the desired performance.

The RJ45 interface is designed for connection with compatible plugs and patch cords. On the rear side, the IDC terminal is suitable for 22 to 26 AWG twisted-pair conductors. This range supports common horizontal cabling sizes used in structured network installations.

The connector has a rated working voltage of 125 V and a dielectric withstand voltage of DC 1000 V, or AC 750 V, for one minute without breakdown or arcing under the specified test conditions. These electrical characteristics help demonstrate the insulation and isolation capability of the product.

Insulation resistance is specified at an initial value of at least 100 MΩ and at least 100 MΩ after the constant damp heat test. High insulation resistance helps limit leakage current between conductive elements and supports stable operation over the expected environmental range.

Materials Selected for Reliability

The selection of contact and housing materials affects electrical performance, mechanical life, corrosion resistance, and manufacturing consistency. The product uses phosphor bronze for the gold-plated contact pins. Phosphor bronze combines suitable spring properties with good electrical conductivity and resistance to fatigue, making it widely used in connector applications.

The IDC card wire terminals are made from phosphor bronze with nickel plating. Nickel provides a durable surface layer that helps protect the underlying metal during repeated termination and environmental exposure. The product specifies a gold-plated layer thickness in the range of 6 to 50 microinches, depending on the applicable contact area and production specification.

The internal printed circuit board uses FR4 material. FR4 is a glass-reinforced epoxy laminate commonly used in electrical and electronic assemblies because of its dimensional stability, mechanical strength, insulation properties, and suitability for controlled manufacturing processes.

Non-metallic components include PC polycarbonate and PA66 nylon 66. Polycarbonate can provide impact resistance, dimensional stability, and electrical insulation. PA66 is known for its mechanical strength and suitability for molded engineering components. The combination of metal and engineered plastics allows the connector to balance strength, insulation, installation convenience, and compact size.

The zinc alloy die-cast shell contributes to structural rigidity and shielding. Die-casting also supports repeatable production of complex shapes, including grounding features, protective edges, and mounting structures. A controlled casting process followed by appropriate finishing and assembly helps maintain consistent fit between the shell and internal components.

Mechanical Durability for Long-Term Use

A network outlet may be connected and disconnected many times during its service life. Moves, adds, and changes in an office environment can require repeated patch cord replacement. Testing equipment may be connected to a cabinet repeatedly. A robust keystone jack must therefore withstand more than a single installation cycle.

The product is specified for 750 plug and socket insertion cycles. This durability level is intended to support repeated connection and disconnection of compatible RJ45 plugs during normal service, maintenance, and network reconfiguration.

The IDC termination system is specified for 250 wire terminations. This characteristic is relevant for installation, repair, and retermination work. In practice, the actual service life depends on the conductor type, installation technique, environmental conditions, and whether the connector is reused in accordance with the project’s maintenance policy.

The insertion force is specified as no more than 20 N, while the pull-out force is no less than 20 N under the stated test conditions. These requirements balance ease of operation with resistance to accidental disconnection. The connector connection device is also tested under a 50 N load for 60 ± 5 seconds, helping evaluate the ability of the assembly to withstand mechanical stress.

The metal shell protects the internal assembly from handling damage and contributes to the overall strength of the product. A compact, embedded construction also reduces the risk of exposed components catching on adjacent cables or equipment during installation.

180-Degree Orientation and Cable Management

Cable routing is a practical concern in every structured cabling project. A connector that forces a cable into a tight bend can place unnecessary stress on the conductor pairs and termination point. Excessive bending may affect pair geometry and can make it more difficult to maintain the intended transmission characteristics.

The 180-degree design provides a controlled termination direction that may be suitable for patch panels, wall outlets, distribution frames, and other compact installations. It helps installers organize the incoming cable and position the termination cover in a way that can support cleaner routing.

Good cable management improves more than appearance. It can make inspection easier, reduce accidental strain, simplify port identification, and support future maintenance. In dense installations, the orientation of each keystone jack can affect how comfortably technicians can access the IDC area and how effectively cables can be arranged behind the panel.

The product’s compact shape is suitable for modular frames and compatible keystone housings. This makes it possible to combine copper network connections with other modular interfaces in a common faceplate or panel, depending on the selected system architecture.

Compatibility with Structured Cabling Systems

The keystone jack is designed for use between horizontal wiring and work-area wiring on the same building floor. It can be installed at the user outlet, in a communication socket, or in a distribution frame where a modular RJ45 connection is required.

Typical mating components include copper twisted-pair horizontal cable, shielded patch cords, compatible RJ45 plugs, modular patch panels, wall plates, and network equipment ports. The product can also be used with connectors from the same standard series, supporting a consistent component strategy across a cabling project.

Because it follows a modular keystone format, the product can be incorporated into different installation types. In a wall outlet, it provides a user-facing data connection. In a patch panel, it creates a structured termination point between permanent links and patching equipment. In a distribution frame, it supports organized port density and easier service access.

For CAT8 projects, the installer should confirm that every active and passive component in the channel is appropriate for the required category and frequency. Using a high-performance jack with lower-category cable, plugs, or patch panels may prevent the channel from achieving the intended performance. Category performance is a system result rather than a characteristic of one component alone.

The T568A and T568B wiring options support standard installation practices. However, a project should use one wiring scheme consistently unless a specific application requires otherwise. Consistent wiring reduces confusion and helps avoid accidental crossover or documentation errors.

Installation Guidance

Before installation, inspect the cable, jack, housing, and intended mounting location. Verify that the cable type and conductor gauge are compatible with the IDC range of 22 to 26 AWG. Confirm that the selected patch panel or wall plate accepts the keystone dimensions and that the grounding path is suitable for the shielded system.

Route the cable to the outlet or panel while maintaining the recommended bend radius specified by the cable manufacturer. Avoid sharp bends, crushing, excessive pulling force, and unnecessary untwisting of the pairs. The preservation of pair twist near the termination area is particularly important for high-frequency performance.

Remove only the necessary amount of jacket. Excessive jacket removal can expose too much of the cable and make the termination less mechanically stable. Separate the conductors carefully, following the printed T568A or T568B sequence on the dust-proof cover.

Place each conductor fully into its designated IDC slot. Check that the conductor insulation and copper position are consistent with the termination instructions. Close the cover according to the product’s operating method, ensuring that the conductors are secured evenly.

After termination, visually inspect the jack and test the link using an appropriate cable verifier or certification instrument. A basic wire map test can identify open, shorted, reversed, or crossed conductors. For CAT8 applications, more comprehensive certification testing may be necessary to evaluate insertion loss, return loss, crosstalk, propagation delay, and other channel parameters.

When using the shielded version, ensure that the cable shield, jack shell, patch panel, and equipment grounding arrangement are electrically continuous as required by the installation design. Poor grounding can reduce the effectiveness of the shield and may introduce unwanted potential differences.

Environmental Performance

The stated operating temperature range is -25°C to +70°C. This range supports many indoor communication environments, including offices, equipment rooms, warehouses, controlled industrial spaces, and technical cabinets. Applications with temperatures outside this range should be reviewed with the supplier before deployment.

The product is specified for humidity of up to 85 percent under the stated test conditions. Moisture can affect metal surfaces, insulation resistance, and long-term contact reliability, so the connector should be installed in an environment appropriate for the selected cable and enclosure system.

The product meets RoHS environmental requirements. RoHS compliance supports projects that require restrictions on specified hazardous substances in electrical and electronic equipment. Buyers should request the relevant compliance documentation when formal project records are required.

Salt spray testing is also included in the environmental performance information. The test uses a sodium chloride solution with a concentration of 5 ± 0.1 percent by mass, a pH value between 6.5 and 7.2 before atomization, and a recommended continuous duration of 48 hours. These conditions are intended to evaluate resistance to corrosive salt-laden atmospheres under controlled laboratory testing.

Salt spray performance does not mean that the connector should be installed without protection in every outdoor or marine environment. Actual application conditions may include condensation, pollutants, dust, temperature cycling, and direct water exposure. Where these conditions exist, an appropriate enclosure and environmental protection strategy should be used.

Quality Control and Manufacturing Strengths

Product performance begins with design, but consistent manufacturing determines whether that performance can be repeated from one production batch to another. Yuyao Simante Network Communication Equipment Co., Ltd. integrates design, development, sales, and service within one organization. This structure allows customer requirements to be communicated between engineering, production, inspection, and technical support teams.

The company has more than 10 engineers and over 30 full-time technical personnel. This engineering and technical workforce supports product development, process improvement, quality management, customization, and production troubleshooting. A dedicated technical team is particularly valuable for connector products because small changes in dimensions, materials, plating, molding, or assembly pressure can affect final performance.

The factory operates 10 regular and customization production lines. This capacity supports both standard product orders and customer-specific projects. It also allows the supplier to organize production according to product families, order volumes, packaging requirements, and customization specifications.

The manufacturing facility includes 10 fully automatic injection molding machines and 20 semi-automatic injection molding machines. These machines support the production of plastic components such as housings, covers, wire organizers, and other molded parts. Automatic and semi-automatic equipment can improve repeatability while allowing the factory to handle different part sizes, mold structures, and order requirements.

The company also operates eight automatic installation machines. Automated assembly equipment can assist with repeatable insertion, positioning, and installation operations. In connector manufacturing, automation helps control production speed and reduce variation in repetitive processes, while technical personnel remain responsible for equipment setup, process monitoring, and quality verification.

The factory maintains an annual output of more than nine million units. This production scale indicates the ability to support substantial projects and recurring supply programs. Capacity is important to distributors, system integrators, and contractors because delayed connector deliveries can affect the schedule of entire cabling installations.

Manufacturing capability is supported by performance testing. According to the company information, Simante emphasizes product quality through controlled production and testing designed to meet customer requirements. For a CAT8 keystone jack, relevant evaluations include electrical continuity, insulation resistance, withstand voltage, contact quality, mechanical strength, insertion and withdrawal durability, environmental resistance, and dimensional inspection.

The combination of engineering resources, molding equipment, assembly machinery, production lines, and testing practices creates a practical advantage over suppliers that rely entirely on external production or limited manual assembly. It also helps the company respond to OEM and ODM requirements involving packaging, labels, colors, materials, structures, and project-specific documentation.

Advantages Compared with Basic Keystone Jacks

The SMT-1061T8C8-FTP offers several advantages compared with ordinary unshielded or lower-category keystone jacks. The first is its CAT8-oriented transmission design and 1 to 500 MHz frequency range. This makes it more suitable for high-bandwidth copper networks than products intended only for lower-speed applications.

The second advantage is full-metal shielding. Basic plastic keystone jacks may be adequate in low-interference office areas, but they do not provide the same conductive enclosure around the signal interface. The zinc alloy shell of this product is intended for installations where electromagnetic compatibility is a significant concern.

The third advantage is tool-less termination. Traditional punch-down jacks may require a separate tool and greater manual force. The tool-less structure can help improve installation speed, particularly when large numbers of outlets must be terminated.

The fourth advantage is the 180-degree form factor. Cable direction and access can be difficult in shallow boxes or dense panels. A controlled 180-degree orientation can help installers achieve cleaner routing and better use of available space.

The fifth advantage is the combination of durable materials and repeatable manufacturing. Phosphor bronze contacts, nickel-plated IDC terminals, gold-plated contact surfaces, FR4 material, PC and PA66 components, and a zinc alloy shell create a balanced construction intended for electrical, mechanical, and environmental reliability.

These advantages should be evaluated according to the complete project specification. A CAT8 shielded jack is not automatically the best choice for every basic network. In a simple, low-interference installation, a lower-category unshielded jack may be sufficient and more economical. However, where future bandwidth, electromagnetic compatibility, modularity, and long-term serviceability are priorities, this product provides a stronger technical foundation.

Applications in Commercial and Technical Environments

Office buildings are a common application for modular keystone jacks. Workstations, meeting rooms, reception areas, wireless access points, printers, security devices, and conference systems may all require organized copper network connections. The tool-less design can support rapid installation during construction or renovation, while the shielding helps address interference concerns in equipment-dense areas.

Data centers and server rooms require careful cable management and reliable port identification. A shielded modular jack can be used in copper patching sections, distribution frames, and equipment-area outlets where high data rates and dense cable arrangements are expected. The 180-degree orientation may assist with routing in compact racks and cabinets.

Industrial facilities often contain motors, variable-frequency drives, control cabinets, sensors, and power equipment. These sources can create a more challenging electromagnetic environment than a conventional office. When combined with appropriate shielded cable and grounding practices, a fully shielded keystone jack can contribute to a more robust industrial communication link.

Smart buildings and automation systems use network connections for access control, lighting management, environmental monitoring, building management systems, and security cameras. Modular copper outlets simplify system expansion and maintenance. A standardized RJ45 interface also helps technicians work with commonly available patch cords and test equipment.

Educational institutions, hospitals, hotels, and public buildings benefit from structured cabling that can be upgraded or reorganized over time. Modular keystone construction allows different outlet types to be integrated into common wall plates or panels, supporting flexible deployment across rooms and service areas.

Residential and smart-home projects can also use high-quality keystone jacks in home distribution panels, media cabinets, wall outlets, and home offices. Although not every residential application requires CAT8 performance, the compact modular form and organized termination method can be useful where future network upgrades are anticipated.

Customization and OEM/ODM Support

Network infrastructure projects often involve requirements beyond a standard catalog product. Customers may need private labels, custom packaging, different surface finishes, modified labels, special colors, alternative mounting arrangements, or changes to accessory combinations. A manufacturer with its own engineering and production resources is better positioned to evaluate and implement these requirements.

The company undertakes OEM and ODM projects and operates dedicated customization production lines. This support can be valuable for distributors that want a private-label product, system integrators that require a consistent component family, and contractors that need project-specific packaging or identification.

Customization should be reviewed carefully because any change to the shell, contact system, shielding path, plastic material, plating, or internal PCB may affect electrical and mechanical performance. A responsible development process should include drawing review, prototype confirmation, sample testing, production validation, and final documentation.

Packaging can also be customized. The standard product is placed in a special blister bag and then packed into a cardboard box with accessories. A label identifying the product model and quantity is applied to the carton. The customer may specify packaging requirements according to distribution, retail, project delivery, or private-label needs.

Packaging, Storage, and Logistics

The standard packing quantity is 50 pieces per box, with 10 boxes per carton, for a total of 500 pieces per carton. This configuration supports organized inventory management and bulk project delivery. Individual blister packaging helps protect each connector from scratches, contamination, and handling damage before installation.

Packaged products should be stored in a warehouse with an ambient temperature between -5°C and +30°C and relative humidity not exceeding 70 percent. The storage area should be free from acid, alkali, and other corrosive gases. Under the stated conditions, the storage period is three years.

Proper storage is important because metal contacts, plating, plastic parts, labels, and packaging materials can all be affected by unsuitable conditions. Products should remain in their original packaging until they are ready for installation. Boxes should be protected from water, direct sunlight, excessive stacking pressure, and contamination.

For international shipments, distributors and project contractors should confirm carton dimensions, gross weight, labeling, documentation, and delivery requirements before order completion. Clear model identification helps prevent confusion between shielded and unshielded versions or between different category levels.

Project Selection Considerations

When selecting a CAT8 keystone jack, buyers should begin by identifying the required transmission category and frequency. If the project requires 500 MHz operation, all channel components should be checked for compatibility. The cable construction, plug type, patch panel, faceplate, and test method should be included in the specification.

The electromagnetic environment should be assessed next. Installations near high-voltage equipment, motors, industrial controls, switching power supplies, or dense electronic systems may benefit from a shielded solution. The project designer should also confirm the grounding topology and ensure that the shield can be maintained throughout the channel.

Mechanical constraints should be reviewed as well. The available depth, cable entry direction, panel cutout, module retention method, and access space can determine whether a 180-degree connector is suitable. Installers should request dimensional drawings or samples when working with a new panel or enclosure design.

Finally, the project should consider installation resources. Tool-less termination can be advantageous when many outlets are required or when installation sites have limited access to tools. Training and testing remain essential, but a clearly marked and guided termination system can help reduce avoidable errors.

Quality, Service, and Supply Reliability

A connector supplier should be evaluated not only by product specifications but also by its ability to provide stable quality and service over time. Yuyao Simante Network Communication Equipment Co., Ltd. has built its business around network cabling solutions and optical fiber products, with product lines that include keystone jacks, patch panels, wall faceplates, data sockets, and related components.

This broader product range can help customers develop a more consistent structured cabling system. Instead of sourcing every component from unrelated suppliers, a customer may be able to coordinate multiple product categories through one experienced manufacturer. This can simplify communication about dimensions, compatibility, packaging, and quality expectations.

The company serves customers in Europe, Australia, Africa, the Middle East, and Southeast Asia. International experience can support export documentation, packaging coordination, communication across time zones, and familiarity with different project requirements. The company also provides customer-specified packaging, which can be important for distributors and branded product programs.

Long-term supply reliability depends on more than annual capacity. It also requires production planning, component sourcing, engineering support, inspection, and the ability to respond to changes. The combination of multiple production lines, automated equipment, technical staff, and customization capability provides a foundation for supporting both standard replenishment orders and larger infrastructure projects.

Q&A

What is a shielded CAT8 keystone jack used for?

A shielded CAT8 keystone jack provides a modular RJ45 connection point for high-performance copper structured cabling. It can connect horizontal cable to a work-area outlet, patch panel, distribution frame, or compatible communication socket. Its metal shell helps support electromagnetic compatibility when used with shielded cable and an appropriate grounding system.

What does the 180-degree design mean?

The 180-degree design describes the orientation of the termination and cable routing structure. It guides the cable and termination area in a controlled direction, which may help installers manage cable bends and work within compact wall plates, patch panels, and distribution frames.

Is the termination process truly tool-less?

The product is designed for tool-less IDC termination. Conductors are placed into the clearly marked IDC positions and secured by closing the termination cover. Installers should still follow the recommended preparation, conductor placement, cable management, and verification procedures.

Does the jack support both T568A and T568B?

Yes. The dust-resistant wire cover includes a universal wiring sequence label for both T568A and T568B arrangements. The installation team should select the wiring scheme specified for the project and apply it consistently throughout the relevant cabling system.

What cable size can be terminated?

The IDC terminal is specified for 22 to 26 AWG twisted-pair cable. The cable construction should also be compatible with the product, and the installer should confirm the cable manufacturer’s stripping and termination recommendations.

How does the full-metal shell help network performance?

The zinc alloy shell forms a 360-degree conductive enclosure around the connector’s critical area. When connected to a compatible shielded cabling and grounding system, it can help reduce the influence of electromagnetic interference and maintain a more controlled electrical environment.

Can the product be used in an unshielded system?

It may be physically possible to use the jack in different configurations, but the complete shielding benefit is achieved when the jack is part of a compatible shielded channel. Project designers should confirm cable, plugs, patch panels, equipment, and grounding compatibility before installation.

How durable is the RJ45 interface?

The product is specified for 750 plug and socket insertion cycles. This supports repeated patch cord connection and disconnection during normal network operation, maintenance, and reconfiguration.

How many times can the IDC area be terminated?

The specified number of wire terminations is 250. Actual service practices should follow the project’s maintenance policy and the manufacturer’s recommendations, particularly when reterminating used cable.

What materials are used in the connector?

The gold-plated contact pins use phosphor bronze, while the IDC card wire terminals use nickel-plated phosphor bronze. The product also uses PC polycarbonate, PA66 nylon 66, FR4 printed circuit board material, and a zinc alloy die-cast shielding shell.

What is the operating temperature range?

The stated environmental temperature range is -25°C to +70°C. Applications outside this range should be reviewed with the supplier before deployment.

Is the product suitable for industrial installations?

The shielded construction can be considered for industrial areas where electromagnetic interference is a concern. However, the complete installation must include suitable shielded cable, grounding, environmental protection, and testing. The product should be evaluated against the specific conditions of the industrial site.

What standards are listed for the product?

The product information lists YD/T 926.1-2009 as the general specification and YD/T 926.3-2009 as the sub-standard. It also states that the product meets RoHS requirements. Project-specific compliance documentation should be requested when required.

Can the manufacturer provide customized packaging?

Yes. Customer-specified packaging is supported. The manufacturer also undertakes OEM and ODM projects, subject to technical review, sample confirmation, order quantities, and production agreement.

What is the standard packing quantity?

The regular packing quantity is 50 pieces per box, with 10 boxes per carton, for a total of 500 pieces per carton.

How should the product be stored?

Packaged products should be stored at -5°C to +30°C, with relative humidity no higher than 70 percent, in an area free from acid, alkali, and other corrosive gases. The stated storage period is three years under these conditions.

Conclusion

The SMT-1061T8C8-FTP 180-Degree Shielded CAT8 Toolless Keystone Jack is designed for structured cabling applications that require high-frequency copper connectivity, efficient installation, durable materials, and electromagnetic protection. Its support for 1 to 500 MHz transmission, T568A and T568B wiring, tool-less IDC termination, 180-degree cable orientation, and 360-degree zinc alloy shielding makes it a versatile solution for modern communication infrastructure.

The product’s electrical and mechanical characteristics are supported by phosphor bronze contacts, nickel-plated IDC terminals, gold-plated contact surfaces, FR4 material, engineered plastics, and a rigid die-cast metal shell. Durability specifications include 750 plug and socket cycles and 250 wire termination cycles, while the environmental design supports a temperature range of -25°C to +70°C under the stated conditions.

Its value is further strengthened by the manufacturer’s engineering resources, production capacity, automated molding and assembly equipment, multiple standard and customization lines, performance testing practices, and experience serving international markets. These capabilities allow the product to compete not only through its technical design but also through manufacturing consistency, supply support, packaging flexibility, and OEM/ODM service.

For projects that require a compact, modular, shielded, and high-performance copper connection, this CAT8 keystone jack provides a practical foundation. When installed as part of a complete compatible channel and verified with appropriate testing, it can support the reliability, maintainability, and upgrade potential expected from modern structured cabling systems.

References

1. YD/T 926.1-2009, General Specification for Communication Cabling Components.

2. YD/T 926.3-2009, Applicable Sub-Standard for Communication Cabling Components.

3. ISO/IEC 11801, Information Technology—Generic Cabling for Customer Premises.

4. ANSI/TIA-568 Series, Telecommunications Cabling Standards for Commercial Buildings.

5. RoHS Environmental Requirements for Electrical and Electronic Products.

6. Manufacturer Product Specification, SMT-1061T8C8-FTP 180-Degree Shielded CAT8 Toolless Keystone Jack.

7. Manufacturer Technical Information, Network Cabling and Optical Fiber Product Manufacturing Capabilities.
