CAT6 Inline Coupler for Reliable Structured Cabling Extensions

In modern structured cabling, a small connectivity component can have a major influence on network stability, installation efficiency, and long-term maintenance cost. The SMT-1034T8C6A CAT6 Inline Coupler is designed for professional copper cabling systems where installers need a compact, dependable, and standards-conscious method to extend or interconnect RJ45 network cables. Built as a straight-through RJ45-to-RJ45 coupler, it allows two terminated copper twisted-pair patch cords or horizontal cable assemblies to be joined quickly without re-termination, specialized tools, or unnecessary downtime.

This product belongs to the CAT6 keystone jack category and serves as a practical interface between equipment-side wiring and work-area cabling. Its embedded design enables it to be used with compatible face plates, panels, and patch panel systems, making it suitable for offices, data rooms, smart buildings, residential networking, automation systems, and many other communication environments. While the product is compact, it integrates important electrical, mechanical, environmental, and material features that distinguish it from ordinary low-cost inline adapters.

Yuyao Simante Network Communication Equipment Co., Ltd. manufactures the SMT-1034T8C6A as part of its copper structured cabling solutions. With nearly two decades of experience in network cabling and optical fiber product manufacturing, the company combines engineering development, stable production capability, quality testing, and OEM/ODM service experience. This article examines the product in detail, explains its technical advantages, compares it with conventional competitors, and highlights the manufacturing strengths that support consistent performance.

SMT-1034T8C6A CAT6 Inline Coupler

Product Overview: A Compact Coupler with Professional Cabling Purpose

The SMT-1034T8C6A CAT6 Inline Coupler is designed to connect two RJ45 crystal plugs in a one-to-one straight-through configuration. In practice, this means that a network cable terminated with an RJ45 plug can be connected directly to another RJ45-terminated cable, allowing installers to extend a cable run, adapt a workstation connection, or complete a panel-based cabling point with minimal effort. The device is especially useful in structured cabling systems where flexibility and clean cable management are important.

Unlike improvised extension methods, a dedicated inline coupler preserves contact alignment and provides a mechanically stable connection between two mating RJ45 plugs. The product uses contact pin technology with high and low dislocation design, a method intended to reduce near-end crosstalk and support stable signal transmission. This makes the coupler more appropriate for professional data cabling than generic connectors that may not adequately consider internal contact geometry.

The product supports a frequency range of 1 to 500 MHz, which makes it relevant for high-performance copper cabling applications. Although the supplied product category information identifies it as a CAT6 keystone jack, the series description refers to Category 6A transmission standards. This indicates that the design targets high-frequency performance and compatibility with advanced cabling expectations. For users, the practical value is a compact coupler built with attention to data transmission requirements rather than merely physical connection.

Its embedded format allows the coupler to fit into panels and patch panels, providing a neat and fixed installation rather than leaving connections loose behind walls or under desks. This is important because structured cabling systems are judged not only by signal capability but also by reliability, organization, accessibility, and future maintenance convenience.

Core Function: RJ45 Straight-Through Cable Extension

The basic function of the SMT-1034T8C6A is straightforward: it joins two RJ45 plug-ended network cables in a direct pin-to-pin arrangement. Straight-through wiring is essential when the purpose is cable extension rather than signal conversion. Each contact position is maintained from one side of the coupler to the other, preserving the expected wiring sequence for T568A and T568B cabling systems.

Because both ends use RJ45 sockets, users do not need to punch down conductors or strip cable jackets during connection. This reduces installation time and limits the risk of wiring mistakes. In many project environments, labor cost and installation consistency are as important as component cost. A coupler that allows fast and repeatable connection can therefore contribute to the overall efficiency of the project.

The inline coupler is especially helpful in renovation and expansion projects. When a network cable is slightly short, replacing the entire cable run can be expensive, disruptive, or impractical. By using a properly designed inline coupler, installers can extend the existing link with another cable while maintaining a clean and controlled connection point. In offices, schools, security systems, and smart home applications, this can significantly reduce unnecessary rework.

However, not all inline couplers are equal. A poorly built coupler can introduce insertion loss, contact instability, crosstalk, and mechanical looseness. The SMT-1034T8C6A addresses these concerns through its material selection, contact design, environmental compliance, and production control.

Compatibility with T568A and T568B Cabling Sequences

Professional structured cabling relies on standardized wiring schemes to ensure predictable connectivity. The SMT-1034T8C6A is designed in line with T568A and T568B line sequences, allowing it to be used in common commercial and residential installations. Since the coupler operates as a one-to-one straight-through connector, it does not alter the wiring scheme used by the connected cables.

This compatibility is important for integrators who work across different sites. Some facilities standardize on T568A, while others use T568B. A coupler that can function properly with both reduces inventory complexity and helps installers carry one practical component for multiple job conditions. This is particularly valuable for contractors, maintenance teams, telecom room technicians, and OEM customers who require adaptable components for varied projects.

The product is also intended to inter-match with connectors of the same standard series. In structured cabling, component compatibility helps preserve mechanical fit and electrical continuity. When installed with suitable panels, face plates, patch panels, and RJ45 plugs, the coupler becomes part of a complete copper cabling ecosystem rather than an isolated accessory.

Key Technical Specifications

The following table summarizes the main technical and construction characteristics of the SMT-1034T8C6A CAT6 Inline Coupler.

Item	Specification	Practical Meaning
Product Type	CAT6 Inline Coupler / Keystone Jack Style Adapter	Used to connect two RJ45 plug-ended network cables
Connection Method	RJ45 crystal head 1-to-1 straight-through type	Maintains direct pin-to-pin continuity
Wiring Compatibility	T568A and T568B	Suitable for common structured cabling standards
Frequency Range	1 to 500 MHz	Supports high-frequency data transmission requirements
Withstand Voltage	DC 1000 V or AC 750 V for 1 minute without breakdown or arcing	Provides electrical insulation confidence under test conditions
Insertion Force	Not more than 20 N	Allows convenient plug insertion
Pull-Out Force	Not less than 20 N	Helps maintain secure connection during use
Connector Device Effect	50 N	Indicates mechanical robustness of the connection device
Durability	750 insertion cycles	Suitable for repeated plug and socket use
Contact Material	Phosphor bronze with gold plating	Improves conductivity, wear resistance, and corrosion resistance
Plastic Material	PC polycarbonate	Provides dimensional stability and impact resistance
PCB Material	FR4	Reliable printed circuit substrate for signal continuity
Operating Temperature	-25°C to +70°C	Suitable for varied installation environments
Humidity Requirement	≤85%	Supports use under controlled humid conditions
Environmental Compliance	ROHS compliant	Meets restrictions on hazardous substances

Electrical Performance Designed for Network Stability

In copper network transmission, electrical performance depends on much more than conductor continuity. A coupler must preserve impedance consistency, minimize crosstalk, maintain stable contact resistance, and avoid excessive signal degradation. The SMT-1034T8C6A is designed with a frequency range of 1 to 500 MHz, supporting demanding cabling environments where high-speed data transmission requires controlled internal structure.

The contact pin design adopts high and low dislocation technology. This structure helps reduce near-end crosstalk, commonly known as NEXT, which occurs when a signal from one pair interferes with another pair near the transmission source. In twisted-pair Ethernet cabling, crosstalk is one of the main limitations on performance. By paying attention to contact arrangement inside the coupler, the product offers an advantage over simple low-grade inline adapters whose internal contact design may be too basic for stable high-frequency operation.

The specified withstand voltage of DC 1000 V or AC 750 V for one minute without breakdown or arcing demonstrates attention to insulation reliability. This does not mean the coupler is used at such voltage during normal Ethernet operation; rather, it indicates that the insulation structure can pass a defined stress test. For installers and system owners, this supports confidence in the product’s manufacturing consistency and safety margin.

The near-end crosstalk attenuation value is specified as at least 3 dB. While complete channel performance depends on every component in the link, including cable, plugs, patch panels, and installation workmanship, the coupler is designed to contribute to controlled signal behavior. In a professional cabling system, every connector point matters. A weak coupler can become the hidden source of network instability, intermittent speed negotiation problems, or packet errors. A well-designed coupler reduces that risk.

Mechanical Strength and Plug Retention

A network connector is often judged only by whether it passes data, but mechanical strength is equally important. In real installations, patch cords may be pulled, adjusted, bent, or moved during maintenance. The SMT-1034T8C6A specifies an insertion force of not more than 20 N and a pull-out force of not less than 20 N. This balance allows plugs to be inserted without excessive effort while still providing secure retention once connected.

The connector connection device effect is rated at 50 N, which reflects the ability of the connection structure to withstand mechanical stress. This is important in wall plates, patch panels, and workstation areas where users may accidentally apply force to connected cables. A weak coupler may loosen over time, creating intermittent contact. Intermittent faults are among the most difficult network issues to diagnose because they may appear only under vibration, temperature change, or cable movement.

The product is rated for 750 insertion cycles. This durability makes it suitable for environments where cables may be reconnected during testing, maintenance, relocation, or equipment upgrade. Many inexpensive couplers may perform acceptably during the first few connections but lose contact tension after repeated use. By using suitable metal contacts and controlled manufacturing processes, the SMT-1034T8C6A is positioned as a more reliable choice for professional installations.

Its compact shape also contributes to mechanical practicality. A bulky inline adapter may interfere with panel density or cable routing. The embedded design of this coupler makes it suitable for fixed mounting with panels and patch panels, keeping the connection organized and protected.

Material Advantages: Gold-Plated Phosphor Bronze, PC Housing, and FR4 PCB

Material selection is a key reason why one coupler outperforms another. The SMT-1034T8C6A uses phosphor bronze contacts with gold plating. Phosphor bronze is widely valued in connector applications because it provides good elasticity, fatigue resistance, and conductivity. Contact elasticity helps maintain pressure against the RJ45 plug contacts, which is essential for long-term electrical continuity.

Gold plating adds another important advantage. Gold is highly resistant to oxidation and corrosion, and it provides a stable conductive surface. The specified gold-plated layer thickness range of 6 to 50 microinches allows the product to support different performance and customer requirements. In network connectors, plating quality directly affects durability and contact reliability. Low-grade connectors with insufficient plating may develop higher contact resistance over time, especially in humid or polluted environments.

The housing uses PC polycarbonate material. Polycarbonate is known for impact resistance, dimensional stability, and heat tolerance. These properties are valuable in keystone-style components because the housing must maintain precise geometry for plug alignment and panel fit. If a housing deforms easily, contact alignment can suffer, producing unstable transmission or loose plug retention.

The PCB material is FR4, a common and reliable glass-reinforced epoxy laminate used in electronic assemblies. FR4 provides mechanical support and insulation for circuit paths inside the coupler. Its use reflects a more engineered approach compared with very simple molded adapters that rely on minimal internal structure. Together, the metal, plastic, and PCB materials form a product designed for both electrical and mechanical dependability.

Environmental Compliance and Real-World Operating Conditions

The SMT-1034T8C6A meets ROHS environmental requirements, restricting the use of hazardous substances. For customers selling into regulated markets, ROHS compliance is more than a technical label; it supports smoother procurement, export, and integration into environmentally responsible product systems. Many commercial buyers, government projects, and international distributors require such compliance as a baseline condition.

The coupler is designed for an environmental temperature range of -25°C to +70°C and humidity of up to 85%. This makes it suitable for many indoor and protected installation environments, including equipment rooms, communication cabinets, office buildings, residential distribution boxes, and automation enclosures. While network components are often installed indoors, they may still experience seasonal temperature variation, air-conditioning cycles, humidity, and dust. A product designed with defined environmental capability provides better confidence than an unspecified commodity connector.

The product information also includes salt spray test conditions, including a sodium chloride solution concentration of 5±0.1%, pH range before atomization, and a recommended continuous atomization duration of 48 hours. Salt spray testing is commonly used to evaluate corrosion resistance, especially for metal parts and plated surfaces. Although the exact application environment for most network couplers is not marine exposure, salt spray testing demonstrates the manufacturer’s attention to material durability and quality verification.

Storage requirements are also defined. Packaged products should be stored at an ambient temperature of -5°C to +30°C, with relative humidity not exceeding 70%, and without acid, alkali, or corrosive gases in the surrounding air. The stated storage period is three years. This level of detail is helpful for distributors, project warehouses, and OEM customers who manage inventory over time.

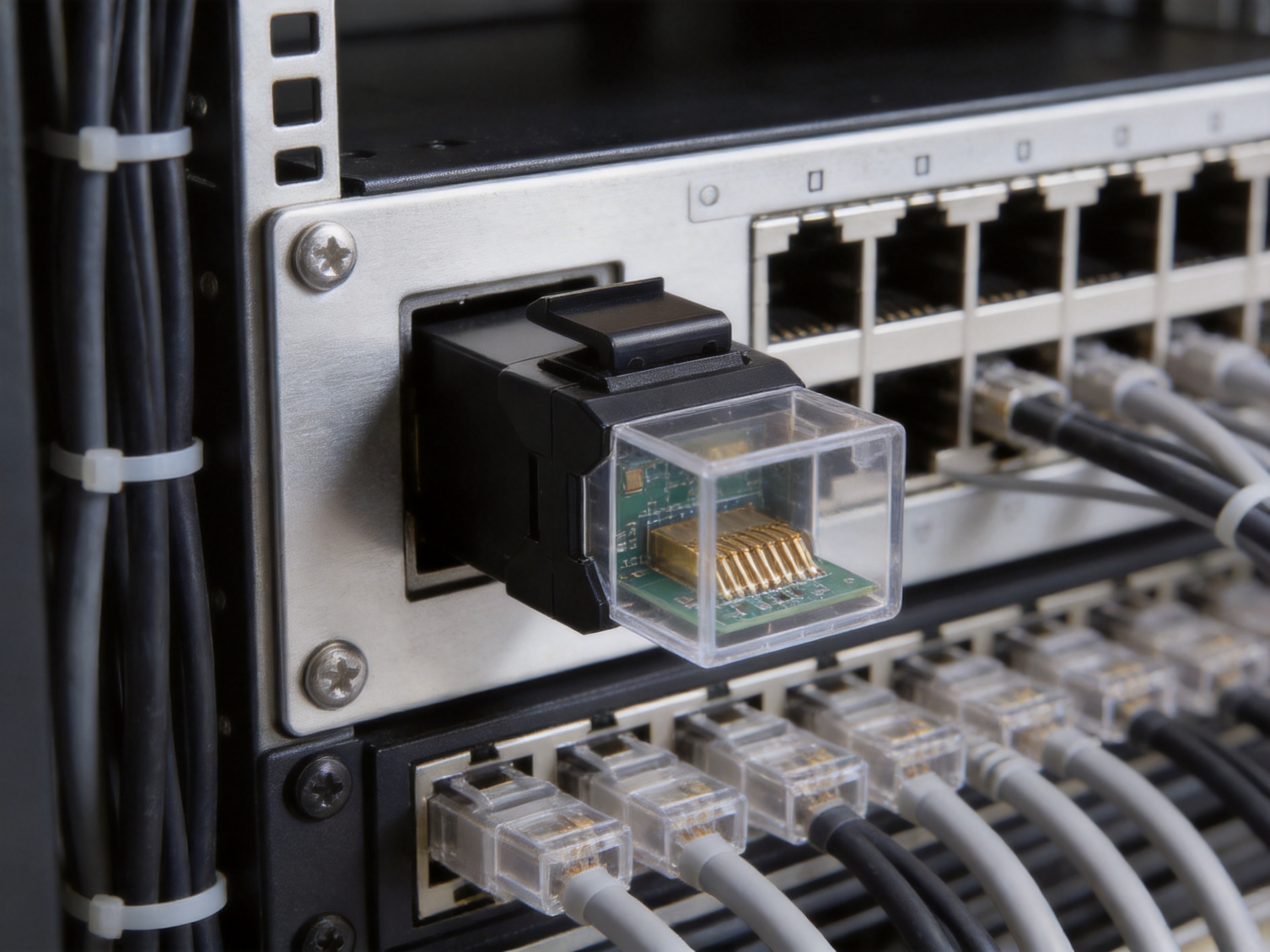

Installation Convenience in Panels, Patch Panels, and Work Areas

The SMT-1034T8C6A is designed with an embedded structure, allowing it to be used with panels and patch panels. This is a significant advantage over loose inline couplers that simply hang between two cables. In professional cabling, a connection point should be accessible, protected, and neatly integrated into the physical infrastructure. A coupler that can be fixed through a card position supports better cable management and reduces strain on the connection.

In a wall face plate, the coupler can act as a pass-through connection, allowing a patch cord to connect from the user side while another cable connects behind the plate. In a patch panel, it can support modular cabling layouts and quick deployment. For temporary or semi-permanent network extensions, the coupler provides an efficient way to bridge connections without modifying the cable terminations.

The tool-free nature of RJ45 plug-to-plug connection reduces installation complexity. This is especially useful for maintenance teams that need to restore service quickly. Instead of cutting, stripping, arranging conductors, and terminating a new keystone jack, technicians can use the coupler to connect two existing RJ45-ended cables. This reduces installation errors caused by incorrect pair order, insufficient conductor seating, poor punch-down force, or excessive untwisting.

For structured cabling contractors, repeatable installation saves time across many outlets. For end users, the benefit is a cleaner and more reliable connection point. For distributors and OEM customers, the product offers a standardized component that can serve multiple applications.

Advantages Over Ordinary Competing Couplers

In the market, many RJ45 inline couplers appear similar from the outside. However, differences in material, contact design, molding precision, plating quality, durability testing, and production control can create major differences in long-term performance. The SMT-1034T8C6A has several advantages over ordinary competing products.

First, it is designed with high-frequency transmission in mind, offering a frequency range up to 500 MHz. Many low-cost alternatives are marketed generically without clear frequency performance information. In network cabling, an unspecified coupler may become the weakest point in the link. The SMT-1034T8C6A provides defined electrical parameters that support more confident system design.

Second, the high and low dislocation contact pin technology helps reduce near-end crosstalk. This design consideration is important because RJ45 couplers compress multiple conductive paths into a small space. Without careful internal arrangement, pair-to-pair interference can increase. Competitors that focus only on low price may use simpler contact structures that do not adequately address crosstalk.

Third, the product uses phosphor bronze gold-plated contacts. Some inferior couplers may use lower-grade contact materials or inconsistent plating. Over time, weaker contacts can lose spring force or corrode, leading to unstable network links. The gold-plated phosphor bronze design provides a stronger foundation for stable conductivity and long service life.

Fourth, the housing uses PC polycarbonate, which supports structural stability and durability. Low-grade plastic may crack, deform, or lose dimensional accuracy, especially under repeated plug insertion or temperature variation. A precise housing helps maintain the correct fit with RJ45 plugs and mounting accessories.

Fifth, the coupler is designed for embedded installation with panels and patch panels. This gives it broader professional application than simple loose barrel adapters. A fixed connection is easier to manage, label, protect, and maintain.

Sixth, defined packaging, storage, and environmental requirements reflect a more controlled product system. Professional buyers often need more than a single component; they need predictable delivery, consistent batches, and reliable documentation. This is where the manufacturer’s process strength becomes as important as the product design itself.

Manufacturing Strength Behind the Product

Yuyao Simante Network Communication Equipment Co., Ltd. is a manufacturer focused on network cabling solutions and optical fiber products. The company integrates design, development, sales, and service, allowing it to respond to customer requirements from product concept through production and delivery. For the SMT-1034T8C6A, this integrated capability supports both standard supply and customized packaging or project-specific requirements.

The company has nearly 20 years of service experience in the industry. Long-term experience matters in structured cabling because connector performance depends on many small design and production details. Mold precision, contact forming, plating consistency, assembly alignment, plastic material control, and testing discipline all influence whether a connector performs reliably in the field.

The company has more than 10 engineers and over 30 full-time technical personnel. This technical team supports product development, process improvement, quality control, and customer customization. For a product like an inline coupler, engineering involvement may include optimizing internal contact geometry, ensuring compatibility with panels, controlling insertion and pull-out force, verifying material choices, and improving assembly efficiency.

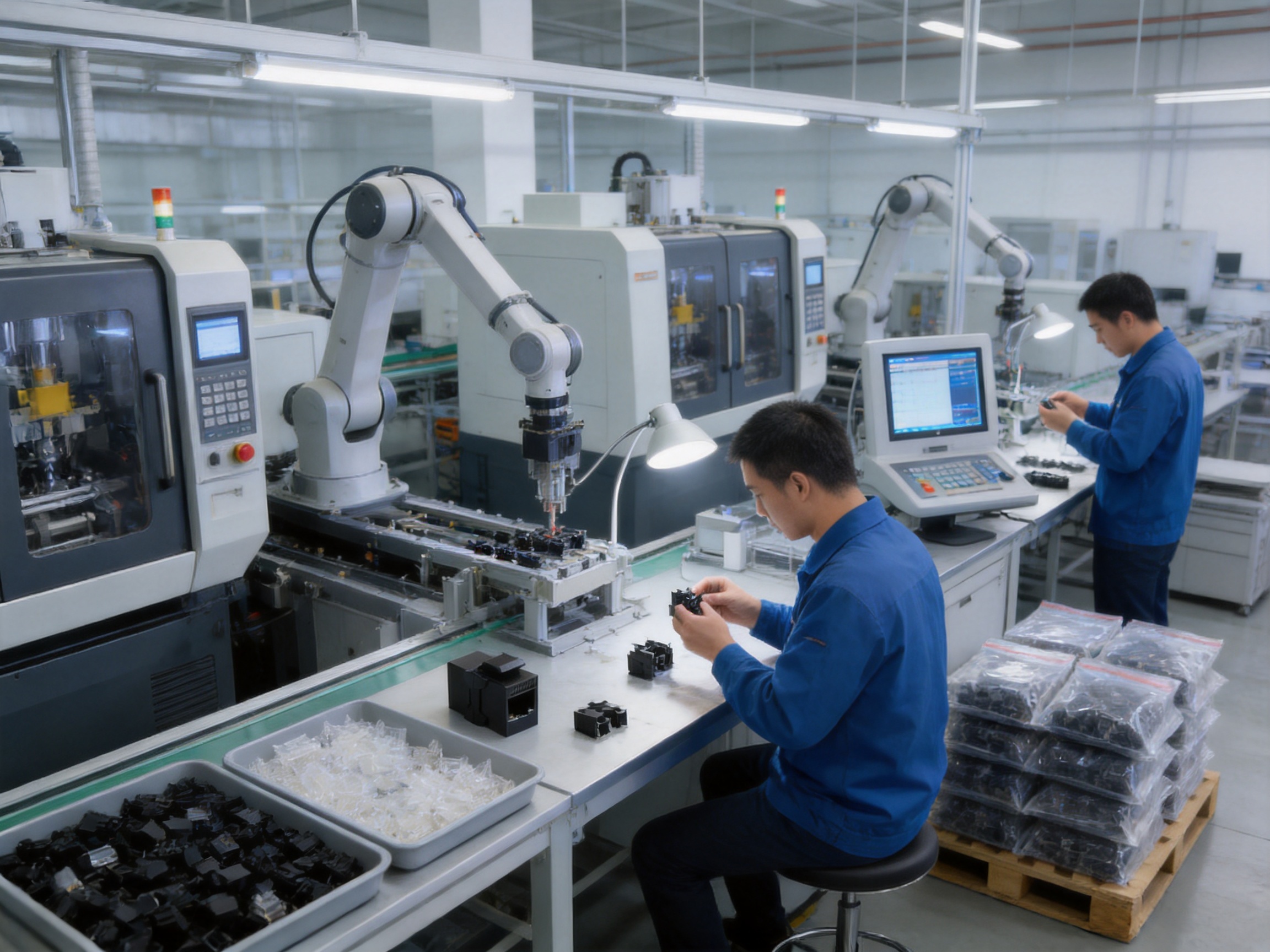

The factory operates 10 regular and customization production lines, 10 fully automatic injection molding machines, 20 semi-automatic injection molding machines, and 8 automatic installation machines. These assets support stable production capacity and consistent output. The company maintains an annual output of more than 9 million units, demonstrating manufacturing scale suitable for distributors, system integrators, brand owners, and large project buyers.

Advanced manufacturing capability is especially important for OEM and ODM customers. Such customers often require stable quality, consistent appearance, customized labels, project packaging, and reliable delivery schedules. The SMT-1034T8C6A benefits from this production environment because the same systems that support large-scale manufacturing also support repeatability and quality control.

Injection Molding Precision and Housing Consistency

The plastic housing of an inline coupler must be dimensionally accurate. RJ45 plugs rely on precise alignment with contact pins and latch structures. If the socket opening is too tight, plug insertion becomes difficult; if it is too loose, mechanical retention and contact pressure may suffer. If internal dimensions vary between batches, performance may be inconsistent.

The manufacturer’s combination of fully automatic and semi-automatic injection molding equipment helps control the housing production process. Automatic injection molding supports stable material feeding, temperature control, cycle control, and repeatable part formation. For PC polycarbonate housings, appropriate processing conditions are important because poor molding can lead to internal stress, warping, surface defects, or dimensional inaccuracy.

By maintaining in-house or controlled molding capability, the company can better manage the relationship between product design and manufacturing outcome. Engineers can adjust mold design, material selection, and processing parameters when needed. This is a competitive advantage over suppliers who depend heavily on outsourced generic plastic shells with less direct process control.

Consistent housing quality also improves assembly efficiency. Automatic installation machines require parts with stable dimensions. When molded parts are consistent, contact insertion, PCB placement, and final assembly can be more repeatable. This reduces defect rates and supports stable mass production.

Contact Formation, Plating, and Assembly Reliability

The contact system is the heart of the SMT-1034T8C6A. RJ45 connectors require multiple spring contacts to align accurately with plug contacts. Contact geometry influences insertion force, retention, electrical resistance, durability, and crosstalk. Phosphor bronze provides the mechanical elasticity needed for repeated mating, while gold plating improves surface reliability.

Gold plating thickness between 6 and 50 microinches allows the product to be adapted to different usage levels and customer expectations. In applications with frequent plug insertion, thicker gold plating can improve wear resistance. In cost-sensitive but still professional applications, a suitable lower plating thickness may provide a balanced solution. This flexibility is valuable for OEM and ODM customers who need to match specification, cost, and market positioning.

Assembly reliability depends on aligning metal contacts, PCB structure, and plastic housing. Automatic installation equipment helps improve repeatability compared with purely manual assembly. While skilled workers remain important for inspection and process supervision, automation reduces variation in repetitive operations. This is particularly useful in high-volume connector production, where small alignment errors can cause signal or mechanical problems.

For buyers comparing suppliers, automated assembly capability is a sign of production maturity. It indicates that the manufacturer is not only able to design a product but also able to produce it consistently at scale.

Quality Stability from Design Source to Final Packaging

The company emphasizes quality stability from the design source. This means that quality is not treated only as final inspection but is considered during product structure, material selection, manufacturing process design, and test planning. For the SMT-1034T8C6A, design-source quality includes choosing reliable contact material, using PC housing material, adopting FR4 PCB, designing the contact layout to reduce crosstalk, and defining mechanical and environmental requirements.

Testing requirements include electrical characteristics, mechanical properties, durability, environmental performance, and salt spray conditions. These tests help verify that the product is suitable for real-world use and export-oriented markets. Customers in Europe, Australia, Africa, the Middle East, and Southeast Asia may have different installation environments and procurement requirements, so stable quality is essential.

Packaging also supports quality preservation. The product is placed into a special blister bag and then into a cardboard box. Product accessories can be placed at the same time, and labels indicate product model and quantity. Regular packing quantity is 10 boxes per carton, 50 pieces per box, and 500 pieces per carton. This organized packaging helps protect products during storage and transportation while simplifying inventory handling for distributors and project managers.

Customer-specified packaging is also supported, which is particularly useful for private-label programs, project kits, and regional distribution channels. Packaging customization may seem secondary, but it often determines whether a product can integrate smoothly into a customer’s supply chain.

Applications in Structured Cabling Systems

The SMT-1034T8C6A is suitable for communication socket connections between equipment and work areas. Its main role is to connect horizontal wiring and work-area wiring on the same floor of a building, especially where terminal equipment, wiring equipment, or adapter conversion connections are needed. It can be used with copper-axis twisted pair cables and copper-axis jumpers, commonly understood as copper twisted-pair network cables and patch cords.

In office buildings, the coupler can help extend network points to desks, meeting rooms, printers, access points, and IP phones. In residential smart home systems, it can support connections between wall plates, routers, switches, media panels, and smart devices. In automation environments, it can connect networked controllers, monitoring devices, and communication modules where RJ45 patching is required.

In data cabinets and communication rooms, the coupler can provide quick cable adaptation when patch cord length or routing needs change. In retail and security systems, it can assist with IP camera, point-of-sale, access control, and wireless access point cabling. In educational facilities, it can simplify network changes in classrooms, laboratories, and administrative offices.

The product is not intended to replace good cabling design. Instead, it provides a practical and reliable connection method when two RJ45 plug-ended cables need to be joined. Used correctly within structured cabling standards and channel length limits, it can improve flexibility and reduce unnecessary cable replacement.

Why Professional Installers Benefit from a Better Coupler

Professional installers understand that a network problem caused by a small connector can consume hours of troubleshooting. A low-quality coupler may appear to work during initial testing but fail under load, movement, or environmental change. Because inline couplers are often hidden behind panels or inside cabinets, failure can be inconvenient to locate.

The SMT-1034T8C6A helps reduce these risks through defined construction and testing. Its secure insertion and pull-out force specifications support mechanical reliability. Its gold-plated phosphor bronze contacts support long-term conductivity. Its high and low dislocation contact technology addresses crosstalk. Its PC housing and FR4 PCB contribute to structural and electrical stability.

For installers, a reliable coupler means fewer callbacks, faster installation, and better customer satisfaction. For system owners, it means fewer intermittent network problems and a lower total cost of maintenance. For distributors, it means fewer complaints and stronger repeat purchase potential.

OEM and ODM Value for Global Buyers

The manufacturer undertakes OEM and ODM projects, making the SMT-1034T8C6A relevant not only as a standard product but also as a customizable component for global brands and distributors. OEM customers may require private labeling, customized packaging, defined gold plating thickness, specific carton labels, accessory combinations, or documentation support. ODM customers may need structural modifications, compatibility adjustments, or product development based on target market requirements.

The company’s production base supports these needs through multiple production lines, injection molding resources, automatic installation machines, and technical personnel. Large output capacity helps ensure that buyers can scale orders when demand increases. Engineering support helps convert customer requirements into manufacturable solutions.

For international buyers, supplier stability is critical. A product may be technically acceptable, but if the manufacturer cannot maintain consistent quality, delivery, or communication, procurement risk increases. Yuyao Simante’s experience in exporting to Europe, Australia, Africa, the Middle East, and Southeast Asia indicates familiarity with international customer expectations.

The company’s broader product range, including keystone jacks, patch panels, wall face plates, and data sockets, also helps customers source complementary structured cabling components from one manufacturing partner. This can simplify supplier management and improve system compatibility.

Comparison with Common Low-Cost Alternatives

Many low-cost inline couplers compete mainly on price. They may be acceptable for temporary or low-demand use, but professional installations require more than initial connectivity. The SMT-1034T8C6A competes by offering a stronger combination of electrical design, mechanical durability, material quality, environmental compliance, and manufacturing support.

A common weakness in low-cost alternatives is vague specification. Without clear frequency range, durability rating, contact material, or environmental information, buyers cannot accurately evaluate risk. The SMT-1034T8C6A provides defined parameters, giving project buyers and technical teams a clearer basis for selection.

Another weakness is inconsistent contact quality. Inferior contacts can create unstable plug engagement and higher contact resistance. The use of phosphor bronze and gold plating gives the SMT-1034T8C6A a more dependable contact interface. Over hundreds of insertion cycles, this difference becomes increasingly important.

Housing quality is also a major differentiator. Poor plastic material can crack or deform, especially when plugs are inserted repeatedly or when panels apply pressure. PC polycarbonate gives the coupler a stronger housing foundation. Combined with embedded installation compatibility, it supports cleaner and more durable system integration.

Finally, manufacturing scale and quality discipline distinguish the product from generic commodity supply. A component sourced from a professional manufacturer with engineering resources, molding equipment, assembly machines, and testing awareness is more likely to remain consistent across batches. For enterprise buyers and distributors, batch-to-batch consistency is essential.

Best Practices for Use

To obtain the best performance from the SMT-1034T8C6A, users should install it as part of a properly designed cabling system. The connected cables should be of appropriate category and quality, and RJ45 plugs should be correctly terminated. A coupler cannot fully compensate for poor cable, damaged plugs, excessive cable length, or improper installation practices.

When using the coupler in a wall plate or patch panel, ensure that it is fully seated in the mounting position. Avoid excessive bending force near the RJ45 plugs, and use suitable cable management to reduce strain. In high-density panels, arrange cables to avoid sharp bends and compression.

The coupler should be stored according to recommended conditions before installation. Avoid corrosive gases, high humidity, and unsuitable temperatures during storage. For project inventory, keep products in their original packaging until use to protect contacts and housings from dust or mechanical damage.

During installation, inspect RJ45 plugs for broken latches, contaminated contacts, or damaged housings. A high-quality coupler works best when paired with high-quality mating connectors. After installation, network certification or continuity testing can verify link performance, especially in commercial projects.

Q&A Section

What is the SMT-1034T8C6A CAT6 Inline Coupler used for?

It is used to connect two RJ45 plug-ended network cables in a straight-through configuration. This allows cable extension, panel pass-through connection, or adapter conversion in structured cabling systems.

Does the coupler support both T568A and T568B wiring?

Yes. The product is designed in line with T568A and T568B line sequences. Because it is a one-to-one straight-through coupler, it preserves the wiring sequence of the connected cables.

Why is gold plating important in this coupler?

Gold plating helps resist oxidation and corrosion while maintaining stable electrical contact. Combined with phosphor bronze contacts, it improves durability and long-term signal reliability.

Can the coupler be installed in a panel or patch panel?

Yes. The embedded design allows it to be used with compatible panels and patch panels, helping create a fixed, organized, and professional connection point.

How does this product reduce crosstalk?

The contact pin design uses high and low dislocation technology, which helps reduce near-end crosstalk by improving internal contact arrangement and reducing interference between signal paths.

What is the durability rating?

The plug and socket insertion durability is rated at 750 cycles, making it suitable for repeated connection and maintenance operations.

What materials are used in the product?

The contacts are phosphor bronze with gold plating, the housing is PC polycarbonate, and the PCB material is FR4. These materials support mechanical strength, electrical reliability, and dimensional stability.

Is the product environmentally compliant?

Yes. It meets ROHS requirements, making it suitable for markets and projects that restrict hazardous substances in electronic and electrical components.

What makes it different from ordinary low-cost inline couplers?

Its advantages include defined high-frequency performance, gold-plated phosphor bronze contacts, PC housing, FR4 PCB, crosstalk-conscious contact design, embedded installation compatibility, durability testing, and support from an experienced manufacturing base.

Can it be customized for OEM or ODM projects?

Yes. The manufacturer supports OEM and ODM projects, including customer-specified packaging and product-related customization according to project requirements.

Conclusion: A Small Component with Significant Network Value

The SMT-1034T8C6A CAT6 Inline Coupler demonstrates how a compact cabling component can deliver meaningful value in structured network systems. By providing a direct RJ45-to-RJ45 straight-through connection, it solves a common installation need: joining two terminated network cables quickly, cleanly, and reliably. Its embedded design allows integration with panels and patch panels, making it suitable for professional environments rather than only temporary cable extension.

The product’s advantages come from a combination of electrical design, mechanical strength, and material selection. A frequency range of 1 to 500 MHz, high and low dislocation contact technology, defined withstand voltage performance, gold-plated phosphor bronze contacts, PC polycarbonate housing, FR4 PCB, and 750-cycle durability all contribute to dependable operation. ROHS compliance and environmental performance requirements further support its suitability for international markets.

Behind the product is a manufacturer with nearly 20 years of experience, engineering resources, technical personnel, multiple production lines, injection molding equipment, automatic installation machines, and large annual output capacity. These strengths help ensure that the coupler is not merely designed well but also produced consistently. For distributors, contractors, OEM customers, and network system integrators, this combination of product performance and manufacturing capability provides a strong reason to choose the SMT-1034T8C6A over ordinary competing couplers.

In structured cabling, reliability is built from every connection point. The SMT-1034T8C6A helps make that connection point stronger, cleaner, and easier to manage.

References

ANSI/TIA-568, Commercial Building Telecommunications Cabling Standard.

ISO/IEC 11801, Information Technology Generic Cabling for Customer Premises.

YD/T 926.1-2009, General Specification for Telecommunications Cabling Systems.

IEC 60603-7, Connectors for Electronic Equipment, 8-Way Shielded and Unshielded Connectors.

RoHS Directive, Restriction of Hazardous Substances in Electrical and Electronic Equipment.

Connector Design Handbook, Electrical Contact Materials and Reliability Principles.
